Suez 1965
El Nasser 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Project 30bis | |||||||
| رشيد [El Nasser] (ex-Солидный [Solidny]) | 190 Zhdanov Yd, Leningrad, USSR | 4.1.1952 | 17.8.1952 | 31.12.1952 // 6.1956 | to USSR 7.1968 (Солидный [Solidny]) | ||

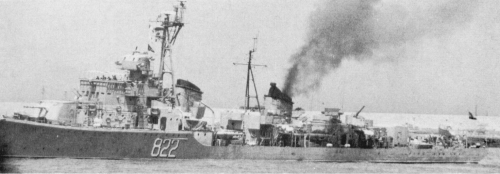

| دمياط [El Zaffer] (ex-Сметливый [Smetlivy]) | 822, 1981- 916 | 190 Zhdanov Yd, Leningrad, USSR | 24.5.1951 | 17.11.1951 | 5.8.1952 // 6.1956 | discarded 1985 | |
| السويس [Suez] (ex-Бурный [Burny]) | 888, 1981- 901 | 445 61 Kommunar Yd, Nikolayev, USSR | 18.5.1950 | 29.8.1950 | 4.6.1951 // 1.1962 | discarded 1985 | |
| دمياط [Damiet] (ex-Беспощадный [Besposhchadny]) | 445 61 Kommunar Yd, Nikolayev, USSR | 28.5.1950 | 30.9.1950 | 27.6.1951 // 1.1962 | to USSR 7.1968 (Беспощадный [Besposhchadny]) | ||
| Project 30BA | |||||||
| دمياط [Damiet] (ex-Бессменный [Bessmenny]) | 844, 1981- 906 | 445 61 Kommunar Yd, Nikolayev, USSR | 12.9.1951 | 31.3.1952 | 10.12.1952 // 6.1968 | discarded 1985 | |
| رشيد [El Nasser] (ex-Отчаянный [Otchayanny)], 1973- أكتوبر6 v [6 October] | 666, 1981- 911 | 402 Yd, Molotovsk, USSR | 25.8.1951 | 29.12.1951 | 25.11.1952 // 6.1968 | discarded 1985 | |
|
Displacement standard, t |
2316 |
|
Displacement full, t |
3066 |
|
Length, m |
120.5 |
|
Breadth, m |
12.0 |
|
Draught, m |
4.26 |
|
No of shafts |
2 |
|
Machinery |
2 TV-6 geared steam turbines sets, 4 KV-30 boilers |
|
Power, h. p. |
60000 |
|
Max speed, kts |
35.5 |
|
Fuel, t |
oil |
| Endurance, nm(kts) | 2900(18) |
|
Armament |
El Nasser(i), El Zaffer, Suez, Damiet(i): 2 x 2 - 130/51 B-2LM, 1 x 2 - 85/52 92K, 4 x 2 - 37/70 V-11, 2 x 5 - 533 TT, 6 DCT, 2 DCR (50), 52 - 60 mines Damiet(ii), El Nasser(ii): 2 x 2 - 130/51 B-2LM, 1 x 4 - 57/75 ZIF-75, 2 x 2 - 37/70 V-11, 2 x 5 - 533 TT, 2 x 16 RBU-2500 Uragan-2 ASWRL, 6 DCT, 2 DCR (50), 52 - 60 mines |
|
Sensors |
El Nassser(i): Giuys-1M, P-10, Rif-1, Rym-1, Zalp, Vympel-2, Zaria radars, Tamir-5N sonar El Zaffer: : Giuys-1M, P-10, Rif-1, Rym-1, Redan, Vympel-2, Redan-4 radars, Tamir-5N sonar Suez, Damiet(i): Giuys-1M, P-10, Rif-1, Rym-1, Redan, Vympel-2 radars, Tamir-5N sonar El Nasser(ii): Fut-N, P-10, Fut-B, Rym-1, Zalp, Vympel-2, Don radars, GS-572 Gerkules sonar Damiet(ii): Fut-N, P-10, Fut-B, Rym-1, Redan, Vympel-2, Don radars, GS-572 Gerkules sonar |
|
Complement |
286 |
Project history: Former Soviet destroyers of Project 30bis (first 4) and 30BA (last two, modernized specially for Egypt)
Modernizations: 1978, El Zaffer: - 1 x 2 - 85/52, 2 x 2 - 37/70; + 2 x 1 SY-1 SSM (2 SY-1), 2 x 2 - 25/80 type 61
late 1970s, Suez, 6 October, Damiet: + 2 x 2 - 25/80 type 61
Naval service: No significant events.
El Zaffer 1977
El Zaffer 1978
