Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
1 تمسه [Timsah 1] | 01 | Timsah SY, Alexandria | 1.1.1980 | 11/1981 | 12/1981 | in service (2019) | |
2 تمسه [Timsah 2] | 02 | Timsah SY, Alexandria | 12/1981 | in service (2019) | |||
3 تمسه [Timsah 3] | 03 | Timsah SY, Alexandria | 12/1981 | lost late 1993 | |||
4 تمسه [Timsah 4] | 04 | Timsah SY, Alexandria | 12/1982 | in service (2019) | |||
5 تمسه [Timsah 5] | 05 | Timsah SY, Alexandria | 12/1982 | in service (2019) | |||
6 تمسه [Timsah 6] | 06 | Timsah SY, Alexandria | 12/1982 | in service (2019) | |||
7 تمسه [Timsah 7] | 07 | Timsah SY, Alexandria | 1988 | in service (2019) | |||
8 تمسه [Timsah 8] | 08 | Timsah SY, Alexandria | 1988 | in service (2019) | |||
9 تمسه [Timsah 9] | 09 | Timsah SY, Alexandria | 1988 | in service (2019) | |||
10 تمسه [Timsah 10] | 10 | Timsah SY, Alexandria | 1989 | in service (2019) | |||
11 تمسه [Timsah 11] | 11 | Timsah SY, Alexandria | 1989 | in service (2019) | |||
12 تمسه [Timsah 12] | 12 | Timsah SY, Alexandria | 1989 | in service (2019) | |||
13 تمسه [Timsah 13] | 13 | Timsah SY, Alexandria | 1992 | in service (2019) | |||
14 تمسه [Timsah 14] | 14 | Timsah SY, Alexandria | 1992 | in service (2019) | |||
15 تمسه [Timsah 15] | 15 | Timsah SY, Alexandria | 1992 | in service (2019) | |||
16 تمسه [Timsah 16] | 16 | Timsah SY, Alexandria | 1992 | in service (2019) |
Displacement standard, t |
|
Displacement full, t |
105 |
Length, m |
28.9 pp 31.0 oa |
Breadth, m |
5.20 |
Draught, m |
1.48 |
No of shafts |
2 |
Machinery |
2 MTU 8V331 TC92 diesels |
Power, h. p. |
1770 |
Max speed, kts |
25 |
Fuel, t |
diesel oil |
Endurance, nm(kts) |
600(18) |
Armament |
1 x 1 - 20/70 A41A (earlier) or 1 x 1 - 20/90 GAM-B01 (later) |
Sensors |
Decca radar |
Complement |
13 |
Project history: Domestic design.
Modernizations: None.
Naval service: No significant events.

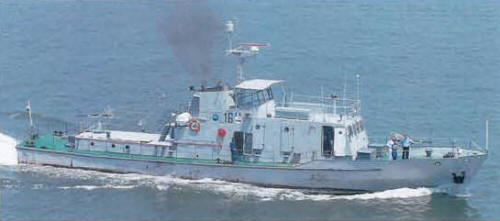

Timsah 16 2006
