EGYPTIAN NAVY (EGYPT)

COAST GUARD SHIPS AND CRAFT

No90 patrol boats (2006-2007)

Name No Yard No Builder Laid down Launched Comp Fate
  90   Swiftships, Morgan City, USA     2006 in service (2019)
  91   Swiftships, Morgan City, USA     2006 in service (2019)
  92   Swiftships, Morgan City, USA     2006 in service (2019)
  93   Swiftships, Morgan City, USA     2007 in service (2019)
  94   Swiftships, Morgan City, USA     2007 in service (2019)
  95   Swiftships, Morgan City, USA     2007 in service (2019)





Displacement standard, t



Displacement full, t

116

Length, m

26.1

Breadth, m

6.10

Draught, m

1.50

No of shafts

2 waterjets

Machinery

2 Caterpillar 3512B diesels

Power, h. p.



Max speed, kts

40

Fuel, t

diesel oil

Endurance, nm(kts)



Armament

2 x 1 - 20/90 GAM-B01, 2 x 1 - 12.7/90

Sensors

radar

Complement

12

Project history: Swiftships Protector design.

Modernizations: None.

Naval service: No significant events.

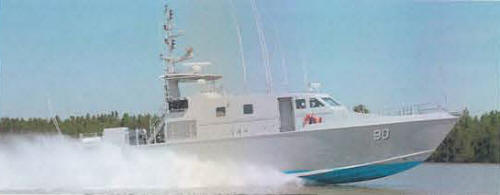

90 2006
