| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 335 | Swiftships, Morgan City, USA | 16.4.1985 | in service (2019) | ||||
| 336 | Swiftships, Morgan City, USA | 16.4.1985 | in service (2019) | ||||
| 337 | Swiftships, Morgan City, USA | 16.4.1985 | in service (2019) | ||||
| 338 | Osman, Ismailia | 16.4.1985 | in service (2019) | ||||
| 339 | Osman, Ismailia | 1986 | in service (2019) | ||||
| 340 | Osman, Ismailia | 1986 | in service (2019) | ||||
| 341 | Osman, Ismailia | 1986 | in service (2019) | ||||
| 342 | Osman, Ismailia | 1986 | in service (2019) | ||||
| 343 | Osman, Ismailia | 1986 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement full, t |
102 |
|
Length, m |
28.4 |
|
Breadth, m |
5.66 |
|
Draught, m |
1.50 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 12V331 TC92 diesels |
|
Power, h. p. |
2660 |
|
Max speed, kts |
27 |
|
Fuel, t |
diesel oil 12 |
|
Endurance, nm(kts) |
1000(12) |
|
Armament |
335-337: 1 x 1 - 20/70 Mk 10, 1 x 1 - 12.7/90 338-343: 1 x 2 - 25/80 2M-3M, 1 x 1 - 14.5/89 |
|
Sensors |
Furuno radar |
|
Complement |
14 |
Project history: Swiftships Commercial Cruiser design.
Modernizations: 1990s, 335-337: - 1 x 1 - 12.7/90; + 1 x 1 - 20/70 Mk 10
1990s, 338-343: - 1 x 2 - 25/80; + 1 x 2 - 23/81 type 61M
Naval service: No significant events.

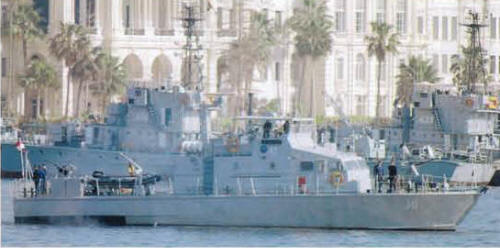

342 2006
© Ivan Gogin, 2018-19
