Ramadan 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| رمضان [Ramadan] | 561, 1987- 670 | Vosper Thornycroft, Portchester, UK | 23.11.1978 | 6.9.1979 | 20.7.1981 | in service (2019) | |
| خيبر [Khyber] | 562, 1987- 672 | Vosper Thornycroft, Portchester, UK | 26.2.1979 | 31.1.1980 | 15.9.1981 | in service (2019) | |
| القادسية [El Kadessaya] | 563, 1987- 674 | Vosper Thornycroft, Portchester, UK | 23.4.1979 | 19.2.1980 | 6.4.1982 | in service (2019) | |
| اليرموك [El Yarmouk] | 564, 1987- 676 | Vosper Thornycroft, Portchester, UK | 16.5.1979 | 12.6.1980 | 18.5.1982 | in service (2019) | |
| بدر [Badr] | 565, 1987- 678 | Vosper Thornycroft, Portchester, UK | 29.9.1979 | 17.6.1981 | 17.6.1982 | in service (2019) | |
| حطين [Hettein] | 566, 1987- 680 | Vosper Thornycroft, Portchester, UK | 1.3.1980 | 25.11.1980 | 28.10.1982 | in service (2019) |
|
Displacement standard, t |
262 |
|
Displacement full, t |
312 |
|
Length, m |
4.0 pp 52.0 oa |
|
Breadth, m |
7.60 |
|
Draught, m |
1.90 hull |
|
No of shafts |
4 |
|
Machinery |
4 MTU 20V538 TB91 diesels |
|
Power, h. p. |
16000 |
|
Max speed, kts |
35 |
|
Fuel, t |
diesel oil 43 |
|
Endurance, nm(kts) |
2000(16) |
|
Armament |
4 x 1 Otomat SSM (4 Otomat), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 2 - 40/70 Breda-Bofors Compact Twin 40 |
|
Sensors |
S810, S820, 2x ST802 radars, Cutlass, Cygnus ECM suites, 4x Protean decoy RL, CAAIS CCS |
|
Complement |
31 |
Project history: Ordered in 1977 to a design derived from the RH Tenacity class. They received very advanced Sapphire fire control system with 2x ST802 radars and 2x Laurence Scott OFD and CAAIS CCS.
Modernizations: 2003-2008, all: - 4 x 1 Otomat Mk 1 SSM, CAAIS CCS; + 4 x 1 Otomat Mk 2 SSM (4 Otomat Mk 2), Nautis 3 CCS
Naval service: No significant events.

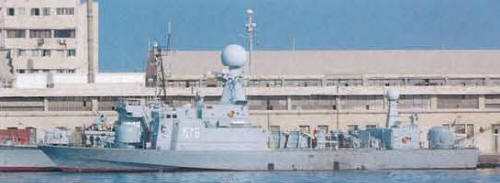

El Yarmouk 2006
