Al Nour 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| النور [Al Nour] | 430 | China | 23.10.1983 | in service (2019) | |||
| الهادي [Al Hadi] | 433 | China | 23.10.1984 | in service (2019) | |||
| الكريم [Al Hakim] | 436 | China | 21.5.1984 | in service (2019) | |||
| الوكيل [Al Wakil] | 439 | China | 21.5.1984 | in service (2019) | |||
| القادر [Al Qatar] | 442 | China | 21.5.1984 | in service (2019) | |||
| الصمد [Al Saddam] | 445 | China | 6.1984 | in service (2019) | |||
| السلام [Al Salam] | 448 | China | 6.1984 | in service (2019) | |||
| الرفيع [Al Rafia] | 451 | China | 6.1984 | in service (2019) |
|
Displacement standard, t |
375 |
|
Displacement full, t |
400 |
|
Length, m |
58.8 |
|
Breadth, m |
7.20 |
|
Draught, m |
2.20 |
|
No of shafts |
4 |
|
Machinery |
4 9D-8 diesels |
|
Power, h. p. |
8800 |
|
Max speed, kts |
30 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
2000(14) |
|
Armament |
2 x 2 - 57/62 type 66, 2 x 2 - 25/80 type 61M, 4 x 5 type 81 ASWRL, 2 DCT, 2 DCR, mines |
|
Electronic equipment |
Type 351 radar, Tamir-11 sonar |
|
Complement |
70 |
Project history: Chinese Type 037.
Modernizations: 2000s, two craft: - Tamir-11 sonar; + 2 x 3 - 324 Mk 32 TT, new US-made sonar
2010s, all: - 2 x 2 - 25/80; + 2 x 2 - 23/81 type 61M, Decca radar
Naval service: No significant events.

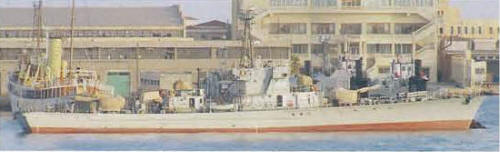

Al Wakil 2007
