No793 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| 793 | China | 1984 | in service (2019) | ||||
| 795 | China | 1984 | in service (2019) | ||||
| 797 | China | 1984 | in service (2019) | ||||
| 799 | China | 1984 | in service (2019) |
|
Displacement standard, t |
122 |
|
Displacement full, t |
135 |
|
Length, m |
38.8 |
|
Breadth, m |
5.41 |
|
Draught, m |
1.55 |
|
No of shafts |
4 |
|
Machinery |
2 M-50F-4 diesels, 2 12D6 diesels |
|
Power, h. p. |
4200 (2x1200+2x910) |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
750(16.5) |
|
Armament |
2 x 2 - 37/63 type 61, 2 x 2 - 25/80 type 61M |
|
Sensors |
Type 351 radar |
|
Complement |
36 |
Project history: Chinese Type 062.
Modernizations: 2000s, all: - 2 x 2 - 25/80; + 2 x 2 - 23/81 type 61M
Naval service: No significant events.

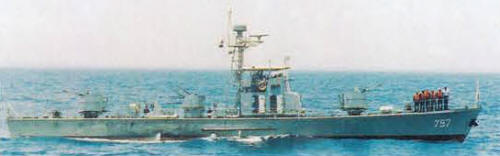

No 797 1997
