No 783 1965
|
Names |
No 781, later- 391, later- 601 No 783, later- 393, later- 602 No 785, later- 395, later- 603 No 787, later- 397, later- 605 No 789, later- 399, later- 606 No 791, later- 607 No 793, later- 608 No 795, later- 609 |
|
Builders |
5 Yd, Leningrad: 781, 783, 785, 787, 789, 791, 793, 795 |
|
Commissioned |
1959-1965 // 1962-1967: 781, 783, 785, 787, 789, 791, 793, 795 |
|
Losses |
1 boat (16.5.1970), 1 boat (10/1973), 1 boat (10/1973) |
|
Transfers |
none |
|
Discarding |
1980: 1 boat 1985: 4 boats |
|
Displacement standard, t |
70 |
|
Displacement full, t |
81 |
|
Length, m |
25.5 |
|
Breadth, m |
6.20 |
|
Draught, m |
1.40 |
|
No of shafts |
4 |
|
Machinery |
4 M50F-4 diesels |
|
Power, h. p. |
4800 |
|
Max speed, kts |
38 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
885(11.8) |
|
Armament |
2 x 1 P-15 SSM (2 P-15), 1 x 2 - 25/80 2M-3M |
|
Sensors |
Rangout radar |
|
Complement |
17 |

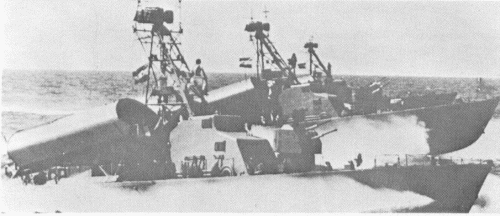

Project history: Soviet project 183R fast attack craft.
Modernizations: 1970s, all survived: diesels were replaced by 4 CRM-12 D/S-2 diesels (5500hp, 40kts).
Naval service: One boat was sunk 16.5.1970 by Israeli aircraft, two were sunk by Israeli forces in October 1973.
1966
