No 609 2000
|
Names |
401, 1988- 609 402, 1988- 611 403, 1988- 613 404, 1988- 614 405, 1988- 615 406, 1988- 616 |
|
Builders |
China: 401-406 |
|
Commissioned |
1984: 401-406 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
2012: 617, 619 in service (2019): 609, 611, 613, 615 |
|
Displacement standard, t |
68 |
|
Displacement full, t |
80 |
|
Length, m |
27.0 |
|
Breadth, m |
6.50 |
|
Draught, m |
1.80 |
|
No of shafts |
4 |
|
Machinery |
4 L-12V-180 diesels |
|
Power, h. p. |
4800 |
|
Max speed, kts |
36 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
500(25) |
|
Armament |
2 x 1 Hai Ying 2 SSM (2 HY-2), 1 x 2 - 25/80 type 61 |
|
Sensors |
type 352C radar |
|
Complement |
17 |
Project history: Chinese Type 024 boats.
Modernizations: 1994, all: - 1 x 2 - 25/80; + 1 x 2 - 23/81 type 61, Decca radar, Triton ECM suite
Naval service: No significant events.

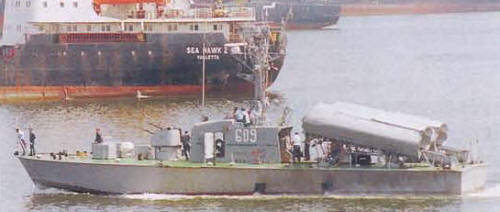

No 609 2000
© Ivan Gogin, 2018-19
