EGYPTIAN NAVY (EGYPT)

COASTAL FORCES

No 301 fast attack craft (missile) (1963-1966/1966-2007)

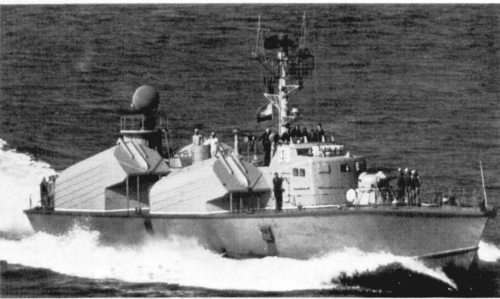

No 301 1970

Name No Yard No Builder Laid down Launched Comp Fate
  301, 1978- 631   341 Yd, Rybinsk, USSR     1963-1966 // 1966 in service (2019)
  312, 1978- 633   341 Yd, Rybinsk, USSR     1963-1966 // 1966 in service (2019)
  323, 1978- 635   341 Yd, Rybinsk, USSR     1963-1966 // 1966 sunk 10.1973
  341, 1978- 637   341 Yd, Rybinsk, USSR     1963-1966 // 1966 stricken 2007
  356, 1978- 639   341 Yd, Rybinsk, USSR     1963-1966 // 1966 stricken 1998
  378, 1978- 641   341 Yd, Rybinsk, USSR     1963-1968 // 1968 stricken 2007
  389, 1978- 643   341 Yd, Rybinsk, USSR     1963-1968 // 1968 in service (2019)
  390, 1978- 645   341 Yd, Rybinsk, USSR     1963-1968 // 1968 sunk 10.1973
(ex-Стева Филиповић [Steva Filipovich]) 647   341 Yd, Rybinsk, USSR     1965-1969 // 5.2007 in service (2019)
(ex-Жикица Jовановић [Zhikitsa Yovanovich]) 649   341 Yd, Rybinsk, USSR     1965-1969 // 5.2007 in service (2019)
(ex-Никола Мартиновић [Nikola Martinovich]) 651   341 Yd, Rybinsk, USSR     1965-1969 // 1.2007 in service (2019)
(ex-JJосип Мазар [Yosip Mazar]) 653   341 Yd, Rybinsk, USSR     1965-1969 // 1.2007 in service (2019)
(ex-Карло Роjц [Karlo Royts]) 655   341 Yd, Rybinsk, USSR     1965-1969 // 5.2007 in service (2019)
(ex-Tuima) 767   341 Yd, Rybinsk, USSR     1974 // 11.2006 in service (2019)
(ex-Tuisku) 768   341 Yd, Rybinsk, USSR     1974 // 11.2006 in service (2019)
(ex-Tuuli) 769   341 Yd, Rybinsk, USSR     1974 // 11.2006 in service (2019)
(ex-Tyrsky) 770   341 Yd, Rybinsk, USSR     1974 // 11.2006 in service (2019)





Displacement standard, t

172

Displacement full, t

209

Length, m

38.6

Breadth, m

7.60

Draught, m

1.73

No of shafts

3

Machinery

3 M-503G diesels

Power, h. p.

12000

Max speed, kts

38.5

Fuel, t

diesel oil

Endurance, nm(kts)

1800(14)

Armament

4 x 1 P-15/P-15T SSM (4 P-15/P-15T), 1 x 4 Strela-2M SAM, 2 x 2 - 30/71 AK-230

Sensors

MR-101 Rangout, MR-104 Rys' radars

Complement

28

Project history: Soviet project 205 fast attack craft. First 8 craft were transferred from USSR in 1966-1968, another 5 were purchased in Montenegro in 2007. Also four craft of project 205E were purchased in Finland in 2006 without missiles and reinstated as missile boats.

Modernizations: 2000s, all: + Triton ECM suite

2010s, all: + 2 x 1 - 12.7/79

Naval service: Some craft were sunk in the war against Israel in October 1973.

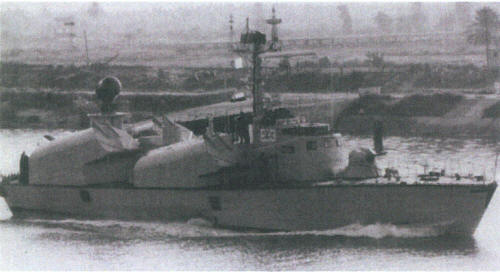

1974

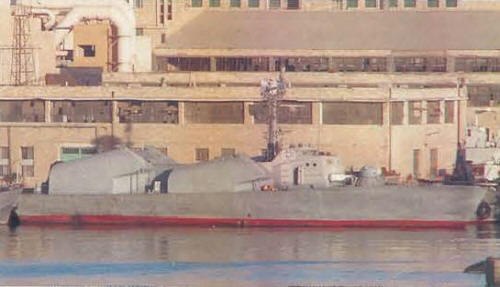

No 633 1986

No 643 2007
