EGYPTIAN NAVY (EGYPT)

COASTAL FORCES

No 211 large patrol craft (1958-1960/1962-1971)

No 211 1965

Name No Yard No Builder Laid down Launched Comp Fate
  211   532 Yd, Kerch', USSR     1958-60 // 1962-67 stricken 1986
  217   532 Yd, Kerch', USSR     1958-60 // 1962-67 stricken 1986
  222   532 Yd, Kerch', USSR     1958-60 // 1962-67 stricken 1986
  228   532 Yd, Kerch', USSR     1958-60 // 1962-67 stricken 1986
  230   532 Yd, Kerch', USSR     1958-60 // 1962-67 stricken 1986
  233   532 Yd, Kerch', USSR     1958-60 // 1962-67 stricken 1986
  239   532 Yd, Kerch', USSR     1958-60 // 1962-67 stricken 1986
  244   532 Yd, Kerch', USSR     1958-60 // 1962-67 stricken 1986
  251   532 Yd, Kerch', USSR     1958-60 // 1971 stricken 1986
  255   532 Yd, Kerch', USSR     1958-60 // 1971 stricken 1986
  262   532 Yd, Kerch', USSR     1958-60 // 1971 stricken 1986
  266   532 Yd, Kerch', USSR     1958-60 // 1971 stricken 1986





Displacement standard, t

190

Displacement full, t

216

Length, m

41.7

Breadth, m

6.18

Draught, m

1.85

No of shafts

3

Machinery

3 40DM diesels

Power, h. p.

6600

Max speed, kts

27

Fuel, t

diesel oil

Endurance, nm(kts)

1500(12)

Armament

2 x 2 - 25/112 2M-3M, 4 x 5 RBU-1200 Uragan ASWRL, 2 DCR (24), 18 mines

Sensors

Reya radar, Tamir-11 sonar

Complement

27

Project history: Former Soviet Project 201 submarine chasers.

Modernizations: 1970s, 6 boats: + 1 x 1 Strela-2M SAM, 1 x 40 - 122 BM-21 Grad RL

1970s, 6 boats: + 1 x 1  Strela-2M SAM, 2 - 533 TT

Naval service: No significant events.

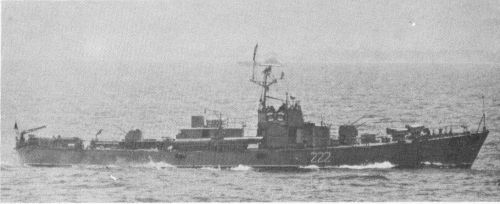

222 1978
