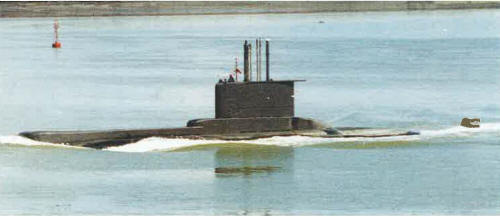

Shyri 1980
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Shyri | S11, 1990s- S101 | Howaldtswerke, Kiel, West Germany | 5.8.1974 | 6.10.1976 | 5.11.1977 | in service (2019) | |
| Huancavilca | S12, 1990s- S102 | Howaldtswerke, Kiel, West Germany | 20.1.1975 | 15.3.1977 | 16.3.1978 | in service (2019) |
|
Displacement standard, t |
|
|
Displacement normal, t |
1285 / 1390 |
|
Length, m |
59.5 |
|
Breadth, m |
6.20 |
|
Draught, m |
5.50 |
|
No of shafts |
1 |
|
Machinery |
4 MTU 12V493 TY60 diesel-generators, 1 Siemens electric motor |
|
Power, h. p. |
2440 / 5000 |
|
Max speed, kts |
11 / 21 |
|
Fuel, t |
diesel oil 110 |
| Endurance, nm(kts) | 8400(8) snorkel / 400(4) |
|
Armament |
8 - 533 TT (bow, 14 SST mod.0) |
|
Electronic equipment |
Calypso radar, CSU-3 sonar suite (A526, CSU AN407A9, DUUX-2 sonars), DR-2000U ECM suite, M8 mod.24 CCS |
|
Complement |
31 |
| Diving depth operational, m | 250 |
Project history: West German type 209/1300 submarines.
Modernizations: 2012, Shyri; 2014, Huancavilca: - SST mod.0 torpedoes, Calypso radar, CSU-3 sonar suite, DR-2000U ECM suite, M8 mod.24 CCS; + Black Shark or A184 torpedoes, Furuno 1832 radar, S-Cube sonar suite, Velox M8 sonar, DMA301 ECM suite, SUBTICS CCS
Naval service: Shyri was damaged 2.2.2003 during a navigational incident and returned to service after repair in July 2005.
Shyri 1998
