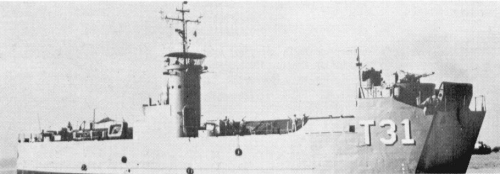

Jambelí 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Jambelí (ex-LSM539) | T31, 1970- T51 | Brown SB, Houston, USA | 5/1945 | 1945 | 12.1945 // 11.1958 | deleted 1983 | |
| Tarqui (ex-LSM555) | T32, 1970- T52 | Charleston N Yd, USA | 3/1945 | 22.3.1945 | 9.1945 // 11.1958 | deleted 1987 |
|
Displacement standard, t |
520 |
|
Displacement full, t |
1095 |
|
Length, m |
59.9 wl 62.0 oa |
|
Breadth, m |
10.5 |
|
Draught, m |
landing: 1.07 fore, 2.13 aft |
|
No of shafts |
2 |
|
Machinery |
4 General Motors diesels |
|
Power, h. p. |
2800 |
|
Max speed, kts |
12.5 - 13.2 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 4900 (12) |
|
Armament |
1 x 2 - 40/60 Mk 1, 4 x 1 - 20/70 Mk 10 |
| Military load |
5 medium or 3 heavy tanks or 6 LVT or 9 DUKW, 48 - 54 marines |
| Electronic equipment | SO or SCR-517 radar |
| Complement | 60 |
Project history: Former USN LSM1 class medium landing ships.
Modernizations: None.
Naval service: No significant events.
Jambelí 1967
