Manta 1980
Manta 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Manta, 2001- 9 de Octubre, 2007- Isla de la Plata | LT91, later- LT41, 1981- LM25, 2001- LG37 | Lürssen, Vegesack, West Germany | 11.6.1971 | Coast Guard 2001, in service (2019) | |||
| Tulcan | LT92, later- LT42, 1981- LM26 | Lürssen, Vegesack, West Germany | 2.4.1971 | collision 9.1998 | |||
| Nueva Rocafuerte, 2001- 27 de Octubre, 2007- Isla Santa Clara | LT93, later- LT43, 1981- LM27, 2001- LG38 | Lürssen, Vegesack, West Germany | 23.6.1971 | Coast Guard 2001, in service (2019) |
|
Displacement standard, t |
119 |
|
Displacement full, t |
134 |
|
Length, m |
36.2 |
|
Breadth, m |
5.80 |
|
Draught, m |
1.70 |
|
No of shafts |
3 |
|
Machinery |
3 Mercedes-Benz diesels |
|
Power, h. p. |
9000 |
|
Max speed, kts |
35 |
|
Fuel, t |
diesel oil 21 |
| Endurance, nm(kts) | 1500(15) |
|
Armament |
1 x 1 - 40/70 Breda-Bofors 350, 2 - 533 TT |
|
Electronic equipment |
Decca TM1226 radar |
|
Complement |
19 |
Project history: Similar to Chilean Guacolda class but with different armament.
Modernizations: 1979, all: - 1 x 1 - 40/70; + 1 x 2 - 30/75 Emerlec-30
1980-1981, all: - 2 - 533 TT; + 4 x 1 Gabriel II SSM (4 Gabriel II), Pollux radar, DR-2000S ECM suite
2001, all survived: - 4 x 1 Gabriel II SSM, 1 x 2 - 30/75, Pollux radar; + 1 x 1 - 20/70 Mk 10, 1 x 1 - 12.7/90
Naval service: Tulcan was lost in a collision with a commercial tug in September 1998.

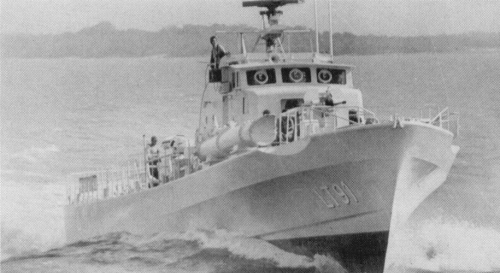

Manta 1972

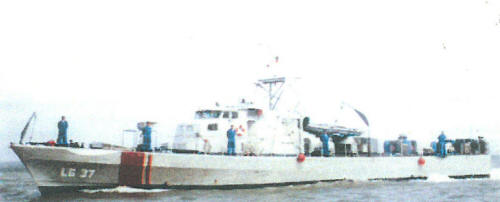

9 de Octubre 2001
