JACO patrol boats (2010)
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Jaco | P212 | Giujian SY, China | 11.6.2010 | in service (2020) | |||
| Betano | P215 | Giujian SY, China | 11.6.2010 | in service (2020) |
|
Displacement standard, t |
150 |
|
Displacement full, t |
175 |
|
Length, m |
40.2 pp 43.0 oa |
|
Breadth, m |
6.40 |
|
Draught, m |
1.61 |
|
No of shafts |
4 |
|
Machinery |
4 Z12-V190BCJ diesels |
|
Power, h. p. |
4800 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
750(16) |
|
Armament |
2 x 1 - 30/77 PJ-13, 2 x 2 - 14.5/93 |
|
Electronic equipment |
LD-1510/6 radar |
|
Complement |
38 |
Project history: Chinese project 062IG, ordered in 2008.
Modernizations: None.
Naval service: No significant events.

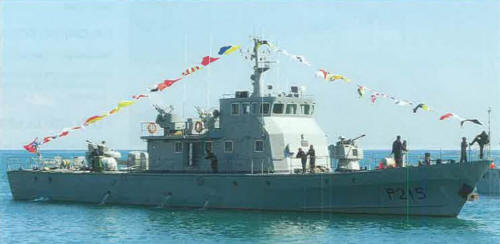

Betano 2012
