LCT(5) 1950
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Samaná | LA2, 1970- LDM302 | Ast. Navales Dominicanos, Santo Domingo | 1958 | stricken 1990s | |||
| 17 de Julio, 1962- Enriquillo | LA3, 1970- LDM303 | Ast. Navales Dominicanos, Santo Domingo | 24.10.1957 | 1958 | stricken 1975 |
|
Displacement standard, t |
150 |
|
Displacement full, t |
310 |
|
Length, m |
36.4 |
|
Breadth, m |
11.0 |
|
Draught, m |
0.90 |
|
No of shafts |
3 |
|
Machinery |
3 General Motors diesels |
|
Power, h. p. |
441 |
|
Max speed, kts |
8 |
|
Fuel, t |
diesel oil 80 |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 12.7/90 |
| Military load |
4 medium tanks or 150 t of cargo |
| Complement | 17 |
Project history:
Domestic build landing craft, similar to USN LCT(5) but slightly larger.
Modernizations: None.
Naval service: No significant events.

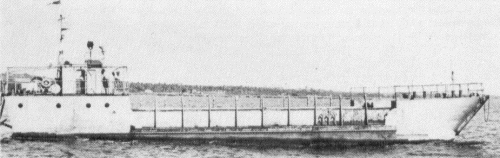

Samaná 1972
