Presidente Trujillo 1950

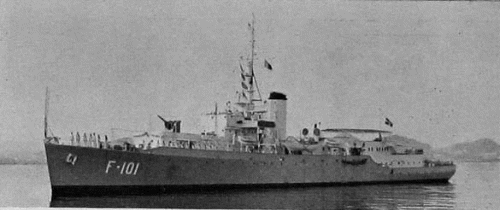

Mella 1963
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Presidente Trujillo (ex-Carlplace), 1962- Mella | F101, 1968- F451 | Davie SB, Lauzon, Canada | 11.1943 | 6.7.1944 | 12.1944 // 1946 | really museum ship 1997 |
|
Displacement standard, t |
1400 |
|
Displacement full, t |
2125 |
|
Length, m |
86.3 pp 91.8 oa |
|
Breadth, m |
11.2 |
|
Draught, m |
3.89 deep load |
|
No of shafts |
2 |
|
Machinery |
2 VTE, 2 Admiralty 3-drum boilers |
|
Power, h. p. |
5500 |
|
Max speed, kts |
20 |
|
Fuel, t |
oil 646 |
| Endurance, nm(kts) | 4200(12) |
|
Armament |
1 x 1 - 102/41 CP Mk XXIII, 2 x 1 - 47/40 3pdr Hotchkiss Mk I, 1 x 1 - 40/60 Mk III, 4 x 1 - 20/70 Mk III |
| Electronic equipment | nav. radar |
|
Complement |
195 |
Project history:
River-type frigate, acquired from Canada in 1946 and converted to
presidential yacht with extra accommodation and deck-houses built up in place of
some armament.
Modernizations: 1960s: - 1 x 1 - 40/60, 4 x 1 - 20/70
(but they were fitted again)
1980s: - old radar; + SPS-64 radar
Naval service: Ship served also as flagship of Dominican Navy.
Presidente Trujillo 1950

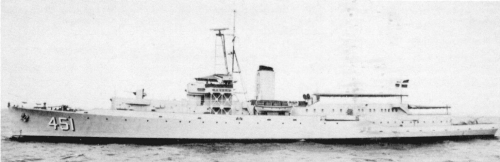

Mella 1972
