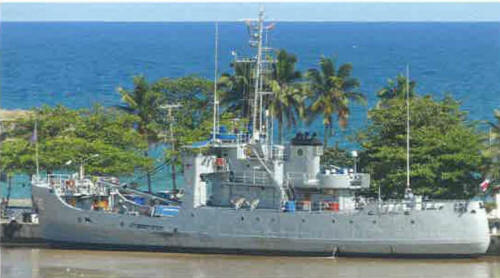

Almirante Didiez Burgos 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Almirante Juan Alejandro Acosta (ex-Citrus) | C456, 2006- PA302 | Marine Iron & SB, Duluth, USA | 29.4.1942 | 15.8.1942 | 30.5.1943 // 29.9.1995 | stricken 2012 | |
| Almirante Didiez Burgos (ex-Buttonwood) | C457, 2006- PA301 | Marine Iron & SB, Duluth, USA | 5.10.1942 | 30.11.1942 | 24.9.1943 // 28.6.2001 | in service (2019) |
|
Displacement standard, t |
935 |
|
Displacement full, t |
1050 |
|
Length, m |
51.8 pp 54.9 oa |
|
Breadth, m |
11.3 |
|
Draught, m |
4.00 |
|
No of shafts |
1 |
|
Machinery |
C456: 2 Cooper-Bessemer 8-cyl diesel-generators, 2 electric motors C457: 2 General Motors EMD 8-645E6A diesel-generators, 2 electric motors |
|
Power, h. p. |
1000 |
|
Max speed, kts |
13 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
C456: 7600(13) C457: 5500(10) |
|
Armament |
2 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 |
|
Electronic equipment |
2x SPS-64(v)1 radars |
|
Complement |
42 |
Project history: Former USCG Balsam class buoy tenders.
Modernizations: None.
Naval service: No significant events.
Almirante Didiez Burgos 2013
