TRUJILLO destroyer (1936/1948)

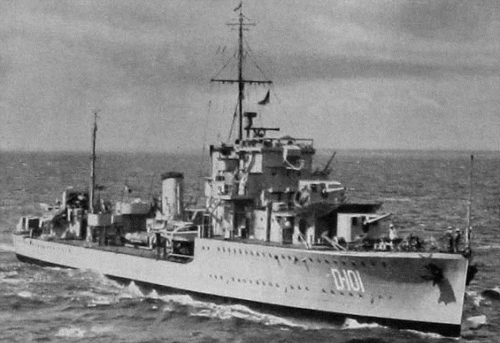

Trujillo 1955

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Trujillo (ex-Hotspur), 1962- Duarte	D101, 1968- D401		Scotts, Greenock, UK	2/1935	23.3.1936	12/1936 // 11.1948	discarded 1972

Displacement standard, t

1370

Displacement full, t

2095

Length, m

95.1 pp 98.5 oa

Breadth, m

10.1

Draught, m

4.06

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 3 Admiralty 3-drum boilers

Power, h. p.

34000

Max speed, kts

36

Fuel, t

443 - 461 oil

Endurance, nm(kts) 5530(15)

Armament

3 x 1 - 120/45 CP Mk XVIII, 2 x 2 - 20/70 Mk V, 2 x 1 - 20/70 Mk III, 1 x 4 - 533 TT, 4 DCT, 1 DCR (125 DC)

Electronic equipment

type 271, type 291 radars, type 144 sonar

Complement

145

Project history: Former British 'H' class destroyer.

Modernizations: None.

Naval service: No significant events.

Trujillo 1951

Displacement standard, t	1370
Displacement full, t	2095
Length, m	95.1 pp 98.5 oa
Breadth, m	10.1
Draught, m	4.06
No of shafts	2
Machinery	2 sets Parsons geared steam turbines, 3 Admiralty 3-drum boilers
Power, h. p.	34000
Max speed, kts	36
Fuel, t	443 - 461 oil
Endurance, nm(kts)	5530(15)
Armament	3 x 1 - 120/45 CP Mk XVIII, 2 x 2 - 20/70 Mk V, 2 x 1 - 20/70 Mk III, 1 x 4 - 533 TT, 4 DCT, 1 DCR (125 DC)
Electronic equipment	type 271, type 291 radars, type 144 sonar
Complement	145
