GENERALISSIMO destroyer (1935/1949)

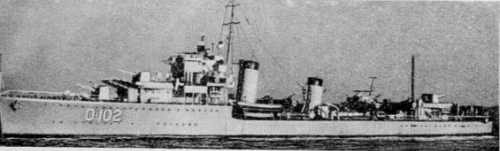

Generalissimo 1953

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Generalissimo (ex-Fame), 1962- Sanchez	D102		Vickers-Armstrong, Tyne, UK	5.7.1933	28.6.1934	4/1935 // 2.1949	discarded 1968

Displacement standard, t

1405

Displacement full, t

2095

Length, m

97.0 pp 100.3 oa

Breadth, m

10.1

Draught, m

4.01

No of shafts

2

Machinery

2 sets Parsons geared steam turbines, 3 Admiralty 3-drum boilers

Power, h. p.

36000

Max speed, kts

36

Fuel, t

oil 471

Endurance, nm(kts) 6350(15)

Armament

4 x 1 - 120/45 CP Mk XVII, 2 x 2 - 20/70 Mk V, 2 x 1 - 20/70 Mk III, 4 DCT, 1 DCR (70 DC)

Electronic equipment type 271, type 291 radars, type 144 sonar

Complement

145

Project history: Former British 'F' class destroyer.

Modernizations: None.

Naval service: No significant events.

Sanchez

Displacement standard, t	1405
Displacement full, t	2095
Length, m	97.0 pp 100.3 oa
Breadth, m	10.1
Draught, m	4.01
No of shafts	2
Machinery	2 sets Parsons geared steam turbines, 3 Admiralty 3-drum boilers
Power, h. p.	36000
Max speed, kts	36
Fuel, t	oil 471
Endurance, nm(kts)	6350(15)
Armament	4 x 1 - 120/45 CP Mk XVII, 2 x 2 - 20/70 Mk V, 2 x 1 - 20/70 Mk III, 4 DCT, 1 DCR (70 DC)
Electronic equipment	type 271, type 291 radars, type 144 sonar
Complement	145

DOMINICAN NAVY (DOMINICAN REPUBLIC)

GENERALISSIMO destroyer (1935/1949)
