Sanchez 1955
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
| Sanchez (ex-SC1351), 1962- 30 de Marzo | GC101 | Vineyard, Milford, USA | 9.1942 | 11.3.1943 | 4.1943 // 1947 | stricken 1965 | |
| Mella (ex-SC1353), 1962- Las Carreras | GC102 | Vineyard, Milford, USA | 11.1942 | 3.6.1943 | 8.1943 // 1947 | stricken 1965 |
|
Displacement standard, t |
121 |
|
Displacement full, t |
136 |
|
Length, m |
32.8 wl 33.8 oa |
|
Breadth, m |
5.18 - 5.50 |
|
Draught, m |
1.88 - 2.00 full load |
|
No of shafts |
2 |
|
Machinery |
2 General Motors diesels |
|
Power, h. p. |
1000 |
|
Max speed, kts |
16 |
|
Fuel, t |
diesel oil 18 |
| Endurance, nm(kts) | 1500 (12) |
|
Armament |
1 x 1 - 40/60 Mk 3, 3 x 1 - 20/70 Mk 10, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCT, 2 DCR (34) |
|
Electronic equipment |
SO or SW-1C radar, QC sonar |
| Complement | 27 |
Project history: Former USN 110ft submarine chasers.
Modernizations:
None.Naval service: No significant events.

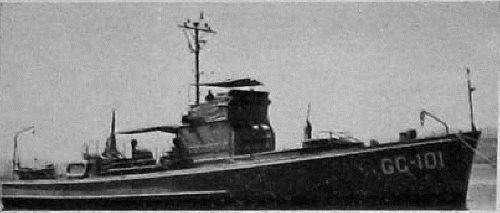

Sanchez 1952
© Ivan Gogin, 2016
