Names |
LR151 Hamal LR152 Vega LR153 Deneb LR154 Acamar |
|
Builders |
Astilleros Navales de la Bahia de las Calderas, Punta Salinas: LR151-154 |
|
Commissioned |
2004: LR151, 152 2005: LR153, 154 |
|
Losses |
LR152 Vega (cyclone 2.2011) |
|
Transfers |
none |
|
Discarding |
in service (2019): LR151, 153, 154 |
|
Displacement standard, t |
16 |
|
Displacement full, t |
|
|
Length, m |
15.1 |
|
Breadth, m |
4.50 |
|
Draught, m |
1.00 |
|
No of shafts |
2 |
|
Machinery |
2 Caterpillar 2406 diesels |
|
Power, h. p. |
1800 |
|
Max speed, kts |
34 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 7.6/90 |
| Electronic equipment | nav. radar |
|
Complement |
6 |
Project history: Damen Stan Patrol 1505 class. Aluminium construction.
Modernizations:
None.Naval service: No significant events.

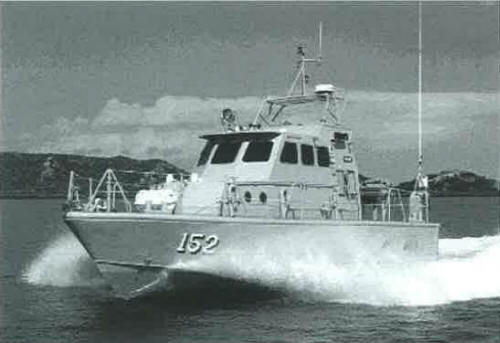

Vega 2006
© Ivan Gogin, 2019
