Project history: US 110ft Commercial Cruiser class. Aluminium construction.
Modernizations: 2003, Canopus; 2004, Orión: diesels were replaced by 3 Caterpillar 3412E (1700hp, 23kts)
Naval service: No significant events.
Orión 2013
� Ivan Gogin, 2019
|
Names |
GC107 Canopus, 1992- GC107 Colón, 2003- GC107 Canopus GC109 Orión |
|
Builders |
Swiftships, Morgan City, USA: GC107, 109 |
|
Commissioned |
1984: GC107, 109 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): GC107, 109 |
|
Displacement standard, t |
|
|
Displacement full, t |
94 |
|
Length, m |
33.5 |
|
Breadth, m |
7.32 |
|
Draught, m |
1.83 |
|
No of shafts |
3 |
|
Machinery |
3 General Motors 12V92 TI diesels |
|
Power, h. p. |
2700 |
|
Max speed, kts |
23 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) |
1500(12) |
|
Armament |
1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90 |
| Electronic equipment | 2x Furuno radars |
|
Complement |
19 |
Project history: US 110ft Commercial Cruiser class. Aluminium construction.
Modernizations: 2003, Canopus; 2004, Orión: diesels were replaced by 3 Caterpillar 3412E (1700hp, 23kts)
Naval service: No significant events.

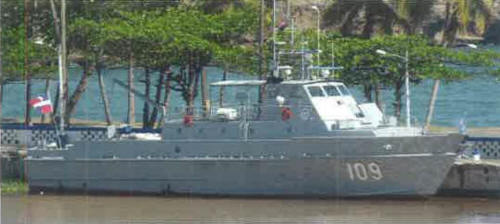

Orión 2013
� Ivan Gogin, 2019
