Bellona 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Rota | C1 | Orlogsværftets, København | 3.1917 | 16.8.1918 | 9.1920 | scuttled 29.8.1943 | |
| Bellona | C2 | Orlogsværftets, København | 6.1917 | 14.3.1919 | 7.1921 | scuttled 29.8.1943 | |
| Flora | C3 | Orlogsværftets, København | 8.1918 | 23.4.1920 | 1.1922 | scuttled 29.8.1943 |
|
Displacement standard, t |
290 |
|
Displacement normal, t |
301 / 369 |
|
Length, m |
47.5 |
|
Breadth, m |
4.77 |
|
Draught, m |
2.70 |
|
No of shafts |
2 |
|
Machinery |
2 Burmeister & Wain diesels / 2 Titan electric motors |
|
Power, h. p. |
900 / 640 |
|
Max speed, kts |
14.5 / 10.5 |
|
Fuel, t |
diesel oil 12 |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 57/40 M.1885 AA, 4 - 450 TT (3 bow, 1 stern, 4) |
|
Complement |
17 |
| Diving depth operational, m |
Project history: Designing of submarines of this class was conducted by Danish Admiralty on the basis of American Holland-designed boats, but with a number of original technical decisions. Original arrangement of TTs has been applied on them: three in a bow (one over another) and one in a stern, and latter launched a torpedo under an angle upwards. Deck TT before CT was passed trials on lead submarine, but its construction has appeared unsuccessful: it was removed from Rota, and two other boats never received it. Single-hulled.
Modernizations: None.
Naval service: All three submarines were scuttled by crews 29.8.1943 at Copenhagen.

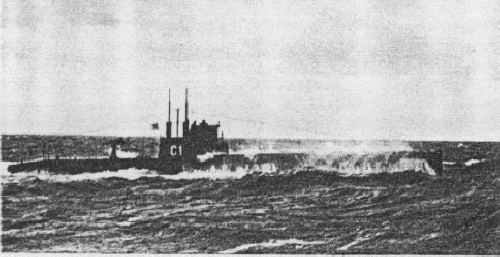

Rota
