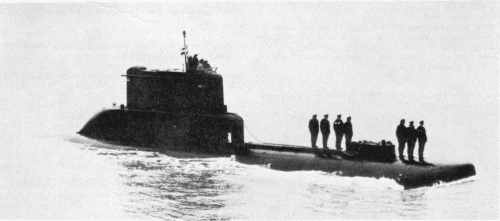

Nahrvalen 1975
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Narhvalen | S320 | 219 | Orlogsværftets, København | 16.2.1965 | 10.9.1968 | 27.2.1970 | stricken 10.2003 |
| Nordkaperen | S321 | 220 | Orlogsværftets, København | 20.1.1966 | 18.12.1969 | 22.12.1970 | stricken 2.2004 |
|
Displacement standard, t |
370 |
|
Displacement normal, t |
430 / 480 |
|
Length, m |
45.4 |
|
Breadth, m |
4.60 |
|
Draught, m |
3.80 |
|
No of shafts |
1 |
|
Machinery |
2 Mercedes-Benz 820Db diesel-generators, 1 electric motor |
|
Power, h. p. |
1100 / 2300 |
|
Max speed, kts |
10 / 17 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
|
|
Armament |
8 - 533 TT (bow, 8) |
|
Electronic equipment |
Calypso radar, SRS-M1H, GHG AN5039A1 sonars |
|
Complement |
22 |
|
Diving depth operational, m |
80 |
Project history: License-built boats of German Type 205 (West German U4), modified for Danish needs.
Modernizations: 1994, Narhvalen; 1995, Nordkaperen: - SRS-M1H, GHG AN5039A1 sonars; + PSU-83 sonar suite (CSU 3.2, PRS 3.4 sonars), Sealion ECM suite, new batteries were mounted
Naval service: No significant events.
Narhvalen 1980
Many thanks to Wolfgang Stöhr for additional information on this page.
