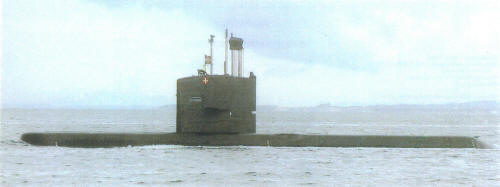

Kronborg 2001
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Kronborg (ex-Näcken) | S325 | 561/383 | Kockums, Malmö, Sweden | 11.1972 | 17.4.1978 | 25.4.1980 // 17.8.2001 | stricken 10.2004 |
|
Displacement standard, t |
|
|
Displacement normal, t |
1218 / 1313 |
|
Length, m |
57.9 |
|
Breadth, m |
5.70 |
|
Draught, m |
4.10 |
|
No of shafts |
1 |
|
Machinery |
1 MTU 16V652 MB diesel-generator, 1 ASEA electric motor / 2 United Stirling V4-275R Mk I AIP generators |
|
Power, h. p. |
1800 / 1500 |
|
Max speed, kts |
10 / 20 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
6 - 533 TT (bow, 8 Tp 61B or Tp 613 or mines), 2 - 400 TT (bow, 4 Tp 422 or Tp 431), mines |
| Electronic equipment | Furuno FR2105 radar, CSU-83 sonar suite (DBQS-21, FAS-3-1), AR-700-S5 ECM suite, IPDS (SESUB 900C) CCS |
|
Complement |
19 |
| Diving depth operational, m | 300 |
Project history: Swedish Type A-14 submarine, modernized with AIP system. Leased in Sweden 13.2.2001 but stricken in 2004 and returned.
Modernizations: None.
Naval service: No significant events.
Kronborg 2002
Many thanks to Wolfgang Stöhr for additional information on this page.
