Delfinen 1970
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Delfinen | S326 | 191 | Orlogsværftets, København | 1.7.1954 | 4.5.1956 | 16.9.1958 | stricken 9.1984 |
| Spækhuggeren | S327 | 192 | Orlogsværftets, København | 1.12.1954 | 20.2.1957 | 27.6.1959 | stricken 7.1989 |
| Tumleren | S328 | Orlogsværftets, København | 22.5.1956 | 22.5.1958 | 15.1.1960 | stricken 8.1981 | |
| Springeren | S329 | 193 | Orlogsværftets, København | 3.1.1961 | 26.4.1963 | 22.10.1964 | stricken 3.1990 |
|
Displacement standard, t |
595 |
|
Displacement normal, t |
/ 643 |
|
Length, m |
54.5 |
|
Breadth, m |
4.70 |
|
Draught, m |
4.00 |
|
No of shafts |
2 |
|
Machinery |
2 Burmeister & Wain diesels / Brown-Boveri electric motors |
|
Power, h. p. |
1200 / 1200 |
|
Max speed, kts |
15 / 15 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4000(8) / |
|
Armament |
4 - 533 TT (bow, 8) |
|
Electronic equipment |
radar, sonars |
|
Complement |
33 |
|
Diving depth operational, m |
100 |
Project history: First Danish-designed submarines built since the war. Springeren was built with US 'Offshore' funds.
Modernizations: None.
Naval service: No significant events.

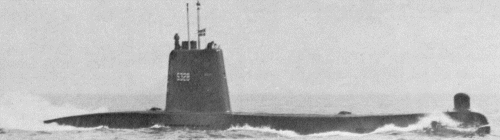

Tumleren 1975
Many thanks to Wolfgang Stöhr for additional information on this page.
© Ivan Gogin, 2016
