Ægir 1918
Galathea 1940
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Ægir | 8, B8 | Orlogsværftets, København | 1914 | 8.12.1914 | 7.1915 | stricken 4.1933 | |
| Ran | 9, B9 | Orlogsværftets, København | 1915 | 30.3.1915 | 10.1915 | scuttled 29.8.1943 | |
| Triton | 10, B10 | Orlogsværftets, København | 1915 | 29.7.1915 | 3.1916 | scuttled 29.8.1943 | |
| Neptun | 11, B11 | Orlogsværftets, København | 1915 | 22.12.1915 | 10.1916 | stricken 4.1933 | |
| Galathea | 12, B12 | Orlogsværftets, København | 5.1915 | 15.4.1916 | 1.1917 | scuttled 29.8.1943 | |
| --- | 13 | Orlogsværftets, København | 1916? | --- | --- | cancelled 1922 |
|
Displacement standard, t |
177 |
|
Displacement normal, t |
185 / 235 |
|
Length, m |
40.6 |
|
Breadth, m |
3.72 |
|
Draught, m |
2.40 |
|
No of shafts |
1 |
|
Machinery |
2 diesels / 2 electric motors |
|
Power, h. p. |
450 / 340 |
|
Max speed, kts |
13.5 / 9.8 |
|
Fuel, t |
diesel oil 8 |
| Endurance, nm(kts) | |
|
Armament |
3 - 450 TT (2 bow, 1 stern, 3) |
|
Complement |
11 |
| Diving depth operational, m |
Project history: Further development of Havmanden class, designed by Whitehead (Austro-Hungary). They differed by bigger dimensions and increased to three TTs number. Single-hulled. Arrangement of third, stern, TT in deck superstructure aft from CT became interesting feature.
Building of six boats of this class was planned, but five were completed only.
Modernizations: 1917, all: + 1 x 1 - 57/40 M.1885 AA
Naval service: Three submarines in 1940 were deduced to reserve and 29.8.1943 scuttled by crews at Copenhagen.

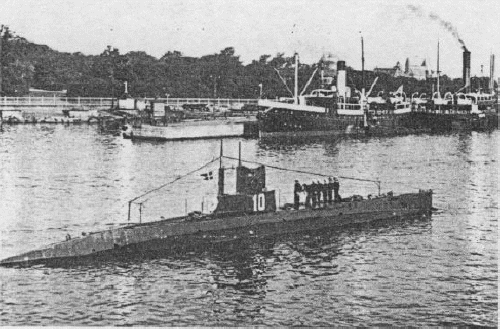

Triton late 1910s
