FYLLA gunboats (1863 - 1864)

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Fylla			Orlogsværftets, København		1.7.1862	1863	stricken 9.1894
Diana			Orlogsværftets, København		11.11.1863	1864	TS 1896, stricken 12.1903

Displacement normal, t

550

Displacement full, t
560

Length, m

47.8

Breadth, m
7.90

Draught, m
3.10

No of shafts
1

Machinery

Power, h. p.
500

Max speed, kts

9.7

Fuel, t

coal 60

Endurance, nm(kts)

Armament

Fylla: 1 x 1 - 202/12.6 60pdr 88cwt 4.321 Ton M1860 Finspång shell SB, 2 x 1 - 167/15.9 30pdr 60cwt SB

Diana: 1 x 1 - 202/12.6 60pdr 88cwt 4.321 Ton M1860 Finspång shell SB, 2 x 1 - 143/14.1 18pdr 40cwt 1.964 Ton MLR

Complement

58

Project history: Wooden-hulled gunboats.

Modernizations: 1864, Fylla: - 2 x 1 - 167/15.9; + 2 x 1 - 43/14.1 18pdr 40cwt 1.964 Ton MLR

1870s, both: - 1 x 1 - 202/12.6; + 1 x 1 - 43/14.1 18pdr 40cwt 1.964 Ton MLR

1880s, both: - 3 x 1 - 143/14.1; + 6 x 1 - 75/32 RK L/35, 2 x 5 - 37/17 M.1875

1896, Diana: was armed only with 2 x 1 - 37/20 M.1875

Naval service: No significant events.

Many Thanks to Kent Crawford for unique correction of information about ships' guns on this page.

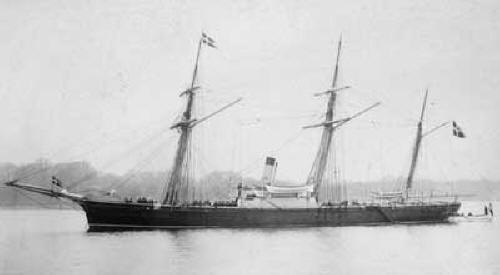

Skrueskonnerten FYLLA
