| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| MSF1 | Danyard, Aalborg | 1998 | in service (2019) | ||||
| MSF2 | Danyard, Aalborg | 1998 | in service (2019) | ||||
| MSF3 | Danyard, Aalborg | 1/1999 | in service (2019) | ||||
| MSF4 | Danyard, Aalborg | 1/1999 | in service (2019) |
|
Displacement standard, t |
102 |
|
Displacement full, t |
125 |
|
Length, m |
23.9 pp 26.5 oa |
|
Breadth, m |
7.00 |
|
Draught, m |
2.20 |
|
No of shafts |
2 azimutal waterjets |
|
Machinery |
2 Scania DSI14.74M diesels |
|
Power, h. p. |
500 |
|
Max speed, kts |
12 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 420(10) |
|
Armament |
Double Eagle USV, Dyad magnetic minesweeping gear |
| Electronic equipment | Furuno 2117 radar, TSM2054 sonar |
|
Complement |
8 / 0 |
Project history: Drone minesweepers. MRD-STOR project. GRP construction. Can be operated by crew as inshore minehunters/minesweepers or by remote control in pairs by other craft.
Modernizations: 2003, all: + AN37U-1 mechanical minesweeping gear
Naval service: No significant events.

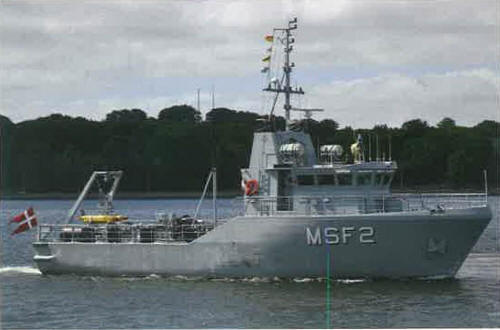

MSF2 2014
