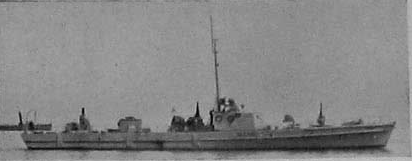

MR226 1945
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| MR225 (ex-R225) | 2808 | Burmester, Burg-Lesum, Germany | 1.1944 // 9.1945 | stricken 1947 | |||
| MR226 (ex-R226) | 2809 | Burmester, Burg-Lesum, Germany | 1.1944 // 9.1945 | stricken 1949 | |||
| MR229 (ex-R229) | 2812 | Burmester, Burg-Lesum, Germany | 2.1944 // 9.1945 | stricken 1951 | |||
| MR230 (ex-R230), 1951- Stigsnæs | 1951- M554 | 2813 | Burmester, Burg-Lesum, Germany | 3.1944 // 9.1945 | stricken 1961 | ||
| MR233 (ex-R233) | 2816 | Burmester, Burg-Lesum, Germany | 4.1944 // 9.1945 | stricken 1948 | |||
| MR236(ex-R236), 1951- Trellenæs | 1951- M555 | 2819 | Burmester, Swinemünde, Germany | 2.1944 // 9.1945 | stricken 1962 | ||
| MR242 (ex-R242), 1951- Vornæs | 1951- M556 | 2825 | Burmester, Burg-Lesum, Germany | 7.1944 // 9.1945 | stricken 1960 | ||
| MR259 (ex-R259) | 2866 | Burmester, Burg-Lesum, Germany | 11.1944 // 9.1945 | stricken 1947 | |||
| MR263 (ex-R263) | 2870 | Burmester, Burg-Lesum, Germany | 3.1945 // 9.1945 | stricken 1947 |
|
Displacement standard, t |
140 |
|
Displacement full, t |
148 |
|
Length, m |
36.8 wl 39.4 oa |
|
Breadth, m |
5.72 |
|
Draught, m |
1.50 normal 1.61 deep load |
|
No of shafts |
2 |
|
Machinery |
2 MWM diesels |
|
Power, h. p. |
2500 |
|
Max speed, kts |
21 |
|
Fuel, t |
diesel oil 15 |
|
Armament |
1 x 1 - 37/83 SK C/30 or 1 x 1 - 37/69 FlaK M/42, 3 x 2 - 20/65 C/38 or 3 x 1 - 20/65 C/38, 12 mines, mechanical minesweeping gear, DCR |
|
Complement |
29 - 40 |
Project history: Former German R218 class R-boats, received from Allies.
Modernizations: None.
Naval service: No significant events.
Vornæs 1953
Many thanks to Wolfgang Stöhr for additional information on this page.
