Iver Huitfeldt 2015
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Iver Huitfeldt | F361 | 714 | Odense Værft, Lindø | 2.6.2008 | 11.3.2010 | 6.2.2012 | in service (2019) |
| Peter Willemoes | F362 | 715 | Odense Værft, Lindø | 12.3.2009 | 13.5.2011 | 9.1.2014 | in service (2019) |
| Niels Juel | F363 | 716 | Odense Værft, Lindø | 22.12.2009 | 7.11.2011 | 21.8.2014 | in service (2019) |
|
Displacement standard, t |
4000 |
|
Displacement full, t |
5850 |
|
Length, m |
138.7 |
|
Breadth, m |
19.8 |
|
Draught, m |
6.10 |
|
No of shafts |
2 |
|
Machinery |
CODAD: 4 MTU 20V800 M70 diesels |
|
Power, h. p. |
44600 |
|
Max speed, kts |
28 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
9000(15) |
|
Armament |
4 x 4 Harpoon Block II SSM (16 RGM-84C), 4 x 8 Standard SM-2MR Block IIIA SAM (VLS, 32 RIM-66K), 2 x 12 ESSM SAM (VLS, 24 RIM-162A), 2 x 2 Sea Stinger SAM (16 FIM-92), 2 x 1 - 76/62 OTO-Melara Compact SR, 1 x 1 - 35/90 Millenium, 4 x 1 - 12.7/90, 2 x 2 - 324 TT (MU-90), 1 helicopter (EH-101 or MH-60R) |
| Electronic equipment | SMART-L, APAR, 2x CEROS 200, Scanter 6000, Scanter 6002, 2x Furuno radars, Safire III e/o system, ASO-94 (DSQS-24C) sonar, ES-3701 ECM system, 4x Sea Gnat DL-12T, 4x Sea Gnat DL-6T decoy RL, C-Flex CCS |
|
Complement |
110 + 50 commandos |
Project history: Project FPS (means Flexible Patrol Ship). Based on the Absalon class and built with the same hull. Fitted with flag and staff facilities and can be used as command ships. Hull blocks were built by Baltija Shipyard in Lithuanian Klajpeda and Loksa Yard in Estonian Loksa and later assembled in Denmark.
Modernizations: None.
Naval service: No significant events.

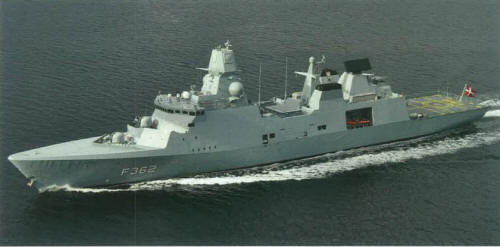

Peter Willemoes 2014
Many thanks to Wolfgang Stöhr for additional information on this page.
© Ivan Gogin, 2019
