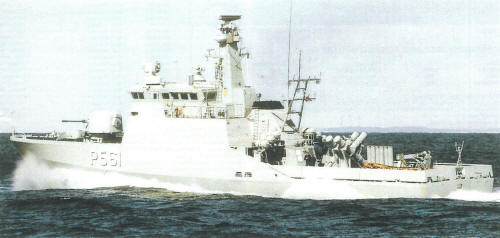

Havkatten 2000
Gribben 2000
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Flyvefisken | P550 | 253 | Karlskronavarvet, Sweden // Danyard, Aalborg | 15.8.1995 | 26.4.1986 | 19.12.1989 | to Lithuania 11.2007 (Žemaitis) |
| Hajen | P551 | 254 | Danyard, Aalborg | 16.6.1988 | 6.12.1988 | 19.7.1990 | to Lithuania 1.2008 (Dzūkas) |
| Havkatten | P552 | 255 | Danyard, Aalborg | 16.12.1988 | 30.5.1989 | 1.11.1990 | stricken 1.2012, to Lithuania (Sėlis) |
| Laxen | P553 | 256 | Danyard, Aalborg | 18.5.1989 | 17.10.1989 | 22.3.1991 | stricken 10.2010 |
| Makrelen | P554 | 257 | Danyard, Aalborg | 13.10.1989 | 7.3.1990 | 1.10.1991 | stricken 10.2010 |
| Støren | P555 | 258 | Danyard, Aalborg | 5.2.1990 | 14.12.1990 | 24.4.1992 | stricken 10.2010 |
| Sværdfisken | P556 | 259 | Danyard, Aalborg | 1/1991 | 1.2.1993 | stricken 8.2006 | |
| Glenten | P557 | 260 | Danyard, Aalborg | 1/1991 | 8/1992 | 29.4.1993 | to Portugal 10.2014 (Mondego) |
| Gribben | P558 | 261 | Danyard, Aalborg | 10/1992 | 1.7.1993 | to Portugal 10.2014 | |
| Lommen | P559 | 262 | Danyard, Aalborg | 1993 | 21.1.1994 | to Lithuania 12.2008 (Aukštaitis) | |
| Ravnen | P560 | 263 | Danyard, Aalborg | 1994 | 17.10.1994 | to Portugal 10.2014 (Douro) | |
| Skaden | P561 | 264 | Danyard, Aalborg | 1994 | 10.4.1995 | to Portugal 10.2014 (Guadiana) | |
| Viben | P562 | 265 | Danyard, Aalborg | 1995 | 15.1.1996 | to Portugal 10.2014 (Tejo) | |
| Søløven | P563 | 266 | Danyard, Aalborg | 6.6.1995 | 28.5.1996 | diving support tender Y311 7.2011 |
|
Displacement standard, t |
320 |
|
Displacement full, t |
500 |
|
Length, m |
50.0 pp 52.0 oa |
|
Breadth, m |
9.00 |
|
Draught, m |
2.50 max hull |
|
No of shafts |
3 |
|
Machinery |
CODAG: 1 General Electric-Fiat LM-500 gas turbine + 2 MTU 16V396 TB94 diesels / 1 General Motors Detroit Diesel 12V71 diesel |
|
Power, h. p. |
5600 + 5800 = 11400 / 500 |
|
Max speed, kts |
30 / 6 |
|
Fuel, t |
diesel / gas turbine oil |
|
Endurance, nm(kts) |
2400(18) |
|
Armament |
PM version: 2 x 4 Harpoon SSM (8 RGM-84C), 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 12.7/90 PT version: 1 x 1 - 76/62 OTO-Melara Compact SR, 2 - 533 TT (Tp 613) or 2 - 324 TT (MU-90) MSC version: 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 12.7/90, Dyad magnetic-acoustic, AAG acoustic minesweeping gear MHC version: 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 12.7/90, 12x Double Eagle Mk 2 USV ML version: 1 x 1 - 76/62 OTO-Melara Compact SR, 2 x 1 - 12.7/90, 60 mines |
|
Electronic equipment |
PM version, P550-556: Scanter Mil 009, AWS-6, 9LV200 radars, 9LV100 e/o system, CTS-36 sonar, Sabre, Cygnus ECM suites, 2x Sea Gnat DL-6T decoy RL, TDS CCS PT version, P550-556: Scanter Mil 009, AWS-6, 9LV200 radars, 9LV100 e/o system, CTS-36, Salmon TSM2640 sonars, Sabre, Cygnus ECM suites, 2x Sea Gnat DL-6T decoy RL, TDS CCS MSC version, P550-556: Scanter Mil 009, AWS-6, 9LV200 radars, 9LV100 e/o system, CTS-36 sonar, Sabre, Cygnus ECM suites, 2x Sea Gnat DL-6T decoy RL, TDS CCS MHC version, P550-556: Scanter Mil 009, AWS-6, 9LV200 radars, 9LV100 e/o system, CTS-36, TSM2054 (or remote control system for 2x MSF or MRD drones) sonars, Sabre, Cygnus ECM suites, 2x Sea Gnat DL-6T decoy RL, TDS CCS ML version, P550-556: Scanter Mil 009, AWS-6, 9LV200 radars, 9LV100 e/o system, CTS-36 sonar, Sabre, Cygnus ECM suites, 2x Sea Gnat DL-6T decoy RL, TDS CCS PM version, P557-563: Scanter Mil 009, TRS-3D16, 9LV200 radars, 9LV100 e/o system, CTS-36 sonar, Sabre, Cygnus ECM suites, 2x Sea Gnat DL-6T decoy RL, TDS CCS PT version, P557-563: Scanter Mil 009, TRS-3D16, 9LV200 radars, 9LV100 e/o system, CTS-36, Salmon TSM2640 sonars, Sabre, Cygnus ECM suites, 2x Sea Gnat DL-6T decoy RL, TDS CCS MSC version, P557-563: Scanter Mil 009, TRS-3D16, 9LV200 radars, 9LV100 e/o system, CTS-36 sonar, Sabre, Cygnus ECM suites, 2x Sea Gnat DL-6T decoy RL, TDS CCS MHC version, P557-563: Scanter Mil 009, TRS-3D16, 9LV200 radars, 9LV100 e/o system, CTS-36, TSM2054 (or remote control system for 2x MSF or MRD drones) sonars, Sabre, Cygnus ECM suites, 2x Sea Gnat DL-6T decoy RL, TDS CCS ML version, P557-563: Scanter Mil 009, TRS-3D16, 9LV200 radars, 9LV100 e/o system, CTS-36 sonar, Sabre, Cygnus ECM suites, 2x Sea Gnat DL-6T decoy RL, TDS CCS |
|
Complement |
19 - 29 |
Project history: Stanflex-300 design of multipurpose craft with interchangeable equipment and armament modules for fast attack craft (PM), patrol boat (PT), minesweeper (MSC), minehunter (MHC) and minelayer (ML). There were 3.5x3.0x2.5m modules: 1 fwd and 3 aft. One module may be replaced in 30 minutes. Foam-core GRP hull strengthened with Kevlar panels.
Modernizations: 1995-2000, Gribben as survey ship: was disarmed, electronic equipment consisted of Scanter Mil 009 radar
1998, 6 units of PM version (including Ravnen, Skaden, Søløven: + 2 x 3 Sea Sparrow SAM (VLS, 6 RIM-7P)
2000, Ravnen as survey ship: was disarmed, electronic equipment consisted of Scanter Mil 009, Furuno FR-1505DA radars
2002-2004, 6 units of PM version (including Ravnen, Skaden, Søløven: - 2 x 3 Sea Sparrow SAM; + 1 x 12 ESSM SAM (VLS, 12 RIM-162A)
2004-2010, all survived: - Scanter Mil 009 radar, TDS CCS; + Furuno FR-1505DA radar, Albatros e/o system. 9LV Mk 3 CCS
2005, Gribben, Søløven: - TRS-3D radar, gas turbine became non-operational
Naval service: In 2006 4 units were armed as missile boats, 4 as minehunters and 2 as patrols.

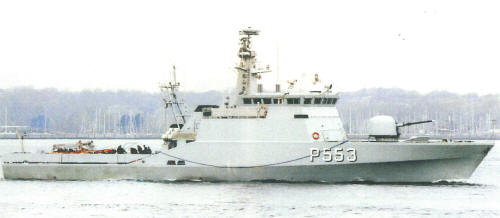

Laxen 2003

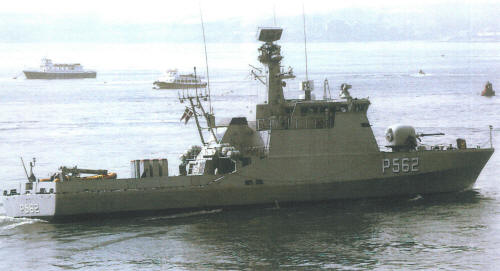

Skaden 2003
Viben 2003
