| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Fyen | Orlogsværftet, København | 1881 | 1882 | 1884 | accommodation ship 1907 |
|
Displacement normal, t |
2663 |
|
Displacement full, t |
|
|
Length, m |
69.0 pp |
|
Breadth, m |
13.8 |
|
Draught, m |
6.10 max |
|
No of shafts |
1 |
|
Machinery |
|
|
Power, h. p. |
2600 |
|
Max speed, kts |
12.5 |
|
Fuel, t |
coal 260 |
| Endurance, nm(kts) | |
| Armour, mm | steel; deck: 38 |
|
Armament |
2 x 1 - 149/32 RK L/35 C/80, 14 x 1 - 149/22 RK L/25 C/78, 8 x 5 - 37/17 M.1875, 2 - 356 TT (bow) |
|
Complement |
300 |
Project history: Full-rigged, iron-hulled ship with a strong ram bow, designed for service in the Danish West Indies.
Ship protection: machinery was protected by 38mm deck 39m long.
Modernizations: 1903: - 2 x 1 - 149/32
Naval service: No significant events.

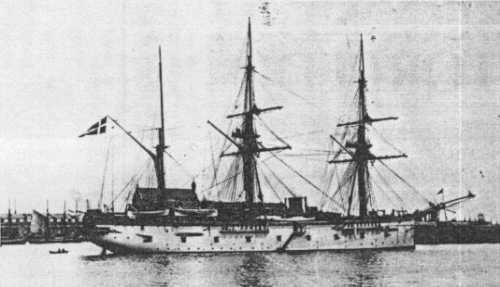

Fyen
