Name | Yard No | No | Builder | Laid down | Launched | Comp | Fate |
1988- Bopa | MHV90 | Svendborg Værft | 8.1973 | 1973 | auxiliary 2010 | ||
1988- Brigaden | MHV91 | Svendborg Værft | 9.10.1973 | 3.1974 | stricken 4.2008 | ||
1988- Holger Danske | MHV92 | Svendborg Værft | 1.1975 | 3.1975 | stricken 5.2011 | ||
1988- Hvidsten | MHV93 | Svendborg Værft | 7.3.1975 | 6.1975 | stricken 4.2008 | ||
1988- Ringen | MHV94 | Svendborg Værft | 8.8.1974 | 12.1974 | stricken 3.2009 | ||
1988- Speditøren | MHV95 | Svendborg Værft | 3.1975 | 1975 | stricken 10.2008 |
Displacement standard, t |
85 |
Displacement full, t |
130 |
Length, m |
19.8 |
Breadth, m |
5.70 |
Draught, m |
1.60 |
No of shafts |
1 |
Machinery |
1 B&W diesel |
Power, h. p. |
400 |
Max speed, kts |
10.7 |
Fuel, t |
diesel oil |
Endurance, nm(kts) | |
Armament |
2 x 1 - 7.6/90 |
Electronic equipment | Furuno FR-1505DA radar |
Complement |
6 |
Project history: Home Guard patrol boats.
Modernizations: None.
Naval service: No significant events.

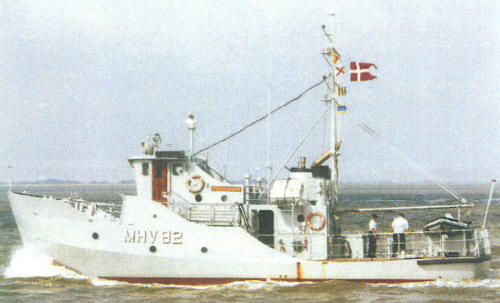

Holger Danske 2003
