Names |
MHV20, 1988- MHV20 Baunen MHV21, 1988- MHV21 Budstikken MHV22, 1988- MHV22 Kureren MHV23, 1988- MHV23 Partisan MHV24, 1988- MHV24 Patrioten MHV25, 1988- MHV25 Sabatøren |
|
Builders |
Elvinds, Svendborg: MHV20-25 |
|
Commissioned |
1974-1981: MHV20-25 |
|
Losses |
no |
|
Transfers |
no |
|
Discarding |
1997: MHV20 1999: MHV21 2000: MHV22, 24 2001: MHV23, 25 |
|
Displacement standard, t |
|
|
Displacement full, t |
60 |
|
Length, m |
16.5 |
|
Breadth, m |
4.20 |
|
Draught, m |
2.00 |
|
No of shafts |
2 |
|
Machinery |
2 MTU diesels |
|
Power, h. p. |
500 |
|
Max speed, kts |
15 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
2 x 1 - 7.6/92 |
| Electronic equipment | Terma 9T48/9 radar |
|
Complement |
9 |
Project history: Patrol boats for the Naval Home Guard. GRP hull.
Modernizations: None.
Naval service: No significant events.

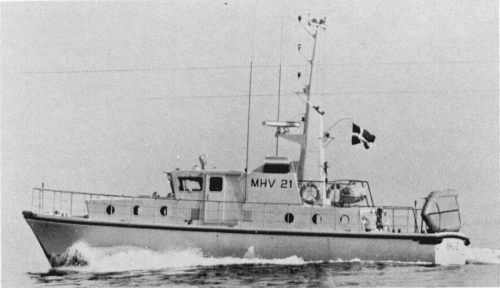

MHV21 1979
