DANISH ROYAL NAVY (DENMARK)

COAST GUARD, FISHERY PROTECTION AND HOME GUARD

BESKYTTEREN patrol ship (1900)

Beskytteren 1943

Name No Yard No Builder Laid down Launched Comp Fate
Beskytteren     Orlogsværftets, København 11.1899 7.6.1900 11.1900 captured by Germany 8.1943





Displacement standard, t

300

Displacement full, t

415

Length, m

43.4

Breadth, m

7.61

Draught, m

3.80

No of shafts

1

Machinery

1 VTE, 2 boilers

Power, h. p.

625

Max speed, kts

11

Fuel, t

coal

Endurance, nm(kts) 1200(10)

Armament

1 x 1 - 47/40 M.1885, 2 x 1 - 37/20 M.1875

Complement

47

Project history: Perhaps, fishery protection ships were unique ships of Danish Navy, intended for operations in high seas, though, of course, it is very difficult to consider them as rigorous warships. They represented very variegated company: huge, to Danish measures, Ingolf with more than 1000t displacement, armed with 120mm guns and carrying a seaplane, and small 80t Ternen with 37mm gun.

Modernizations: 1930s: - 2 x 1 - 37/20; + 1 x 1 - 57/40 M.1885, 1 x 1 - 47/40 M.1885

Naval service: Beskytteren was captured by Germans in August, 1943 at Copenhagen. She was returned in May, 1945 and used as minesweeper depot ship till 1950.

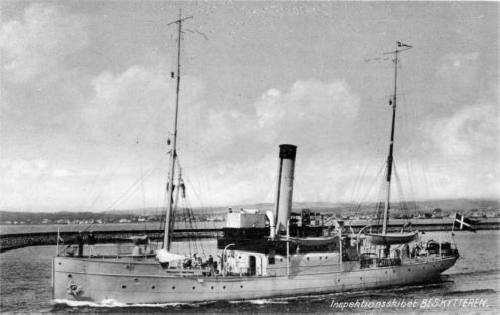

Beskytteren
