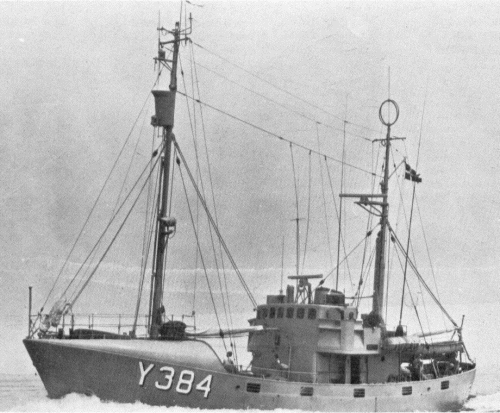

Maagen 1990
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Maagen | Y384 | 356 | Helsingør Skibs & Maskinbyggeri | 1.1960 | 19.3.1960 | 5.1960 | stricken 12.1991 |
| Mallemukken | Y385 | 357 | Helsingør Skibs & Maskinbyggeri | 1.1960 | 19.3.1960 | 5.1960 | stricken 12.1991 |
|
Displacement standard, t |
190 |
|
Displacement full, t |
205 |
|
Length, m |
27.0 |
|
Breadth, m |
7.20 |
|
Draught, m |
2.90 |
|
No of shafts |
1 |
|
Machinery |
1 B & W Alpha diesel |
|
Power, h. p. |
385 |
|
Max speed, kts |
10.5 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 40/60 Mk 3 |
| Electronic equipment | 2x NWS-3 radars |
| Complement |
13 |
Project history: Patrol boats for Greenland waters. Steel hull.
Modernizations: 1970s, both: - 1 x 1 - 37/20; + 1 x 1 - 20/70 Mk 7
Naval service: No significant events.
Maagen 1976
Many thanks to Wolfgang Stöhr for additional information on this page.
