Flyvefisken 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Flyvefisken | P500 | 188 | Frederikssund Skibsværft // Orlogsværftets, København | 1953 | 11.5.1954 | 11.1954 | stricken 8.1974 |
| Hajen | P501 | 185 | Orlogsværftets, København | 1953 | 15.9.1954 | 2.1955 | stricken 8.1974 |
| Havkatten | P502 | 189 | Frederikssund Skibsværft // Orlogsværftets, København | 1953 | 5.11.1954 | 6.1955 | stricken 8.1974 |
| Laxen | P503 | 186 | Orlogsværftets, København | 1953 | 12.11.1954 | 5.1955 | stricken 8.1974 |
| Makrelen | P504 | 187 | Orlogsværftets, København | 1953 | 20.1.1955 | 7.1955 | stricken 8.1974 |
| Sværdfisken | P505 | 190 | Frederikssund Skibsværft // Orlogsværftets, København | 1953 | 5.4.1955 | 9.1955 | stricken 8.1974 |
|
Displacement standard, t |
110 |
|
Displacement full, t |
132 |
|
Length, m |
36.0 pp 36.6 oa |
|
Breadth, m |
5.50 |
|
Draught, m |
1.80 |
|
No of shafts |
3 |
|
Machinery |
3 Mercedes-Benz diesels |
|
Power, h. p. |
7500 |
|
Max speed, kts |
40 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 760(32) |
|
Armament |
1 x 1 - 40/70 Bofors 315, 1 x 1 - 20/70 Mk 7, 2 - 533 TT (4) |
| Electronic equipment | radar |
| Complement |
23 |
Project history: Voted in 1952. Development of German S-boat type.
Modernizations: None.
Naval service: No significant events.

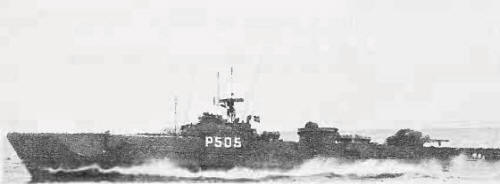

Sværdfisken 1970
Many thanks to Wolfgang Stöhr for additional information on this page.
