Diana 2010
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Diana | P520 | Faaborg Værft | 27.10.2005 | 27.3.2006 | 6.11.2007 | in service (2019) | |
| Freja | P521 | Faaborg Værft | 29.8.2006 | 30.5.2008 | in service (2019) | ||
| Havfruen | P522 | Faaborg Værft | 29.11.2006 | 25.9.2008 | in service (2019) | ||
| Najaden | P523 | Faaborg Værft | 27.3.2007 | 11.12.2008 | in service (2019) | ||
| Nymfen | P524 | Faaborg Værft | 30.7.2007 | 4.5.2009 | in service (2019) | ||
| Rota | P525 | Faaborg Værft | 19.10.2007 | 12.12.2009 | in service (2019) |
|
Displacement standard, t |
186 |
|
Displacement full, t |
232 |
|
Length, m |
41.0 wl 43.0 oa |
|
Breadth, m |
8.40 |
|
Draught, m |
1.92 |
|
No of shafts |
2 |
|
Machinery |
2 MTU 16V396 TB94 diesels |
|
Power, h. p. |
5550 |
|
Max speed, kts |
22 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
700 |
|
Armament |
2 x 1 - 12.7/90 |
|
Electronic equipment |
Furuno 2117 radar |
|
Complement |
13 |
Project history: Ordered in 2004. GRP construction, built as replacement for Barsø class. Each ship has space for one Standard Flex container, allowing use the ship for fishery protection, patrol and search and rescue duties. Fast RIB can be launched via stern ramp. Hulls were formed by Kockums, Sweden. SVPC (FPV40) Fassmer design.
Modernizations: None.
Naval service: No significant events.

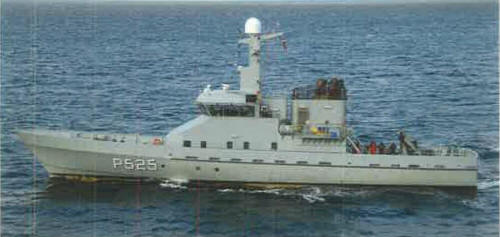

Rota 2012
