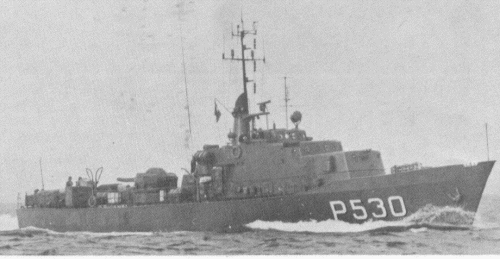

Daphne 1965
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Daphne | P530 | 200 | Orlogsværftets, København | 10.11.1960 | 12.1961 | stricken 6.1990 | |
| Dryaden | P531 | 201 | Orlogsværftets, København | 1.3.1961 | 4.1962 | stricken 7.1991 | |
| Havmanden | P532 | 202 | Orlogsværftets, København | 16.5.1961 | 8.1962 | stricken 1978 | |
| Havfruen | P533 | 203 | Orlogsværftets, København | 4.10.1961 | 12.1962 | stricken 2.1991 | |
| Najaden | P534 | 204 | Orlogsværftets, København | 20.6.1962 | 4.1963 | stricken 10.1991 | |
| Nymfen | P535 | 205 | Orlogsværftets, København | 1.11.1962 | 10.1963 | stricken 11.1991 | |
| Neptun | P536 | 206 | Orlogsværftets, København | 29.5.1963 | 12.1963 | stricken 10.1989 | |
| Ran | P537 | 207 | Orlogsværftets, København | 10.7.1963 | 5.1964 | stricken 3.1991 | |
| Rota | P538 | 214 | Orlogsværftets, København | 26.11.1963 | 1.1965 | stricken 10.1989 |
|
Displacement standard, t |
150 |
|
Displacement full, t |
170 |
|
Length, m |
37.0 |
|
Breadth, m |
6.80 |
|
Draught, m |
2.60 |
|
No of shafts |
3 |
|
Machinery |
2 Maybach diesels + 1 Foden FD-6 diesel (cruising) |
|
Power, h. p. |
2600 + 100 |
|
Max speed, kts |
20 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 40/70 Bofors 315, 2 DCR, mines |
| Electronic equipment | NWS-3 radar, PMS-26 sonar |
| Complement |
23 |
Project history: Four were built under US Offshore Programme.
Modernizations: 1980s, all survived: - NWS-3 radar; + 1 x 1 - 20/70 Mk 7, Terma 20T 48 Super radar
Naval service: No significant events.
Daphne 1978
Many thanks to Wolfgang Stöhr for additional information on this page.
