Tordenskjold 1882
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Tordenskjold | Orlogsværftets, København | 5.6.1879 | 30.9.1880 | 29.9.1882 | stricken 5.1908 |
|
Displacement normal, t |
2462 |
|
Displacement full, t |
|
|
Length, m |
67.8 |
|
Breadth, m |
13.2 |
|
Draught, m |
4.80 max |
|
No of shafts |
2 |
|
Machinery |
2 VC, 8 cylindrical boilers |
|
Power, h. p. |
2600 |
|
Max speed, kts |
12.7 |
|
Fuel, t |
coal 170 |
| Endurance, nm(kts) | |
|
Armour, mm |
compound; barbette: 203, deck: 38 with 97mm slopes |
|
Armament |
1 x 1 - 355/22 RK L/25 C/80, 4 x 1 - 120/22 RK L/25 C/79, 1 x 1 - 84/13 M.1872, 4 x 5 - 37/17 M.1875, 1 - 381 TT (bow), 3 - 356 TT (2 beam, 1 aft) |
|
Complement |
206 |
Project history: A ship of unusual type with the 355mm barbette forward and the 120mm guns in shields aft.
Ship protection: Sides were unprotected, hull was protected by 38mm deck with 97mm slopes. 355mm gun was protected by 203mm barbette.
Modernizations: 1883: - 1 x 1 - 84/13; + 4 x 5 - 37/17 M.1875
Naval service: No significant events.
Tordenskjold

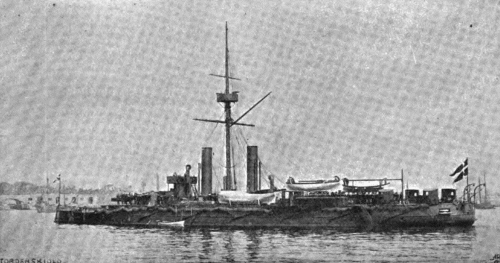

Tordenskjold 1907
© Ivan Gogin, 2014
