Odin 1874
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Odin | Orlogsværftets, København | 13.4.1871 | 12.12.1872 | 7.9.1874 | stricken 6.1912 |
|
Displacement normal, t |
3170 |
|
Displacement full, t |
3230 |
|
Length, m |
73.4 pp |
|
Breadth, m |
14.8 |
|
Draught, m |
5.00 max |
|
No of shafts |
2 |
|
Machinery |
2 HRCR, 4 rectangular boilers |
|
Power, h. p. |
2300 |
|
Max speed, kts |
12 |
|
Fuel, t |
coal 177 |
| Endurance, nm(kts) | 560(10) |
|
Armour, mm |
compound; side: 203, battery: 203 |
|
Armament |
4 x 1 - 254/15 M.1874, 6 x 1 - 84/13 M.1872 |
|
Complement |
206 |
Project history: A low freeboard central battery ship, completely armoured above water, and with the unusual feature of a withdrawable spur ram.
Ship protection: Ship was protected by 203mm side and battery armour.
Modernizations: 1879: + 6 x 5 - 37/17 M.1875
1883: - 6 x 1 - 84/13; + 4 x 1 - 87/21 RK L/24 C.80
Naval service: No significant events.

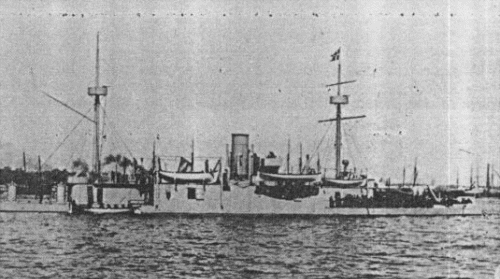

Odin
