Iver Hvitfeldt 1887
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Iver Hvitfeldt | Orlogsværftets, København | 9.4.1884 | 14.4.1886 | 1.6.1887 | stricken 2.1919 |
|
Displacement normal, t |
3392 |
|
Displacement full, t |
3478 |
|
Length, m |
74.5 pp |
|
Breadth, m |
15.1 |
|
Draught, m |
5.59 max |
|
No of shafts |
2 |
|
Machinery |
2 VC, 8 cylindrical boilers |
|
Power, h. p. |
5100 |
|
Max speed, kts |
15.2 |
|
Fuel, t |
coal 290 |
| Endurance, nm(kts) | |
|
Armour, mm |
compound; belt: 295 - 175, deck: 53, barbettes: 215, CT: 115 |
|
Armament |
2 x 1 - 263/32 RK L/35 C/86, 4 x 1 - 120/27 RK L/30 C/84m, 2 x 1 - 57/40 M.1885, 8 x 5 - 37/17 M.1875, 2 - 381 TT (1 bow, 1 stern), 2 - 356 TT (2 beam) |
|
Complement |
277 |
Project history: A coast defence battleship with an amidships belt and the 26cm guns in fore and aft single barbettes.
Ship protection: The belt was 295mm between barbettes (175mm abreast barbettes), the deck was 53mm, it has turtleback forms at ship ends.
Modernizations: 1906: - 4 x 1 - 120/27, 2 - 356 TT; + 8 x 1 - 57/40 M.1885
Naval service: No significant events.

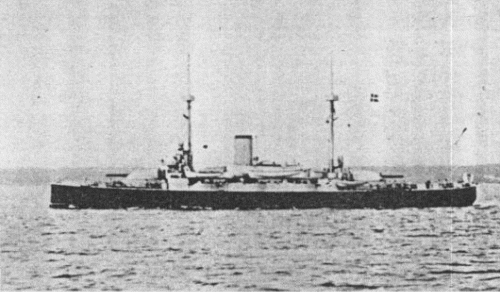

Iver Hvitfeldt
