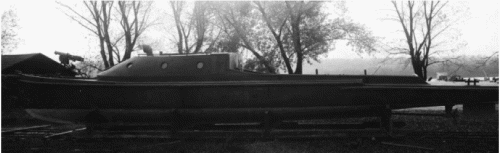

OMm33 1924
|
Names |
Ms-5, 1923- OMm33 Ms-6, 1923- OMm34 |
|
Builders |
Ústecká s. r. o.: Ms-5, 6 |
|
Commissioned |
1920: Ms-5, 6 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
1938: OMm33, 34 |
|
Displacement standard, t |
|
|
Displacement full, t |
24 |
|
Length, m |
16.9 |
|
Breadth, m |
2.80 |
|
Draught, m |
0.80 max |
|
No of shafts |
1 |
|
Machinery |
1 petrol engine |
|
Power, h. p. |
55 |
|
Max speed, kts |
8 |
|
Fuel, t |
petrol |
| Endurance, nm(kts) | |
|
Armament |
1 x 1 - 7.9/85 |
|
Complement |
6 |
Project history: Patrol launches were originally commissioned by Army, but later converted to minelayers and transferred to riverine flotilla.
Modernizations: 1923-1924, both: petrol engine was replaced by Škoda diesel (100hp, 10.8kts). + 5 - 7 mines
Naval service: No significant events.
OMm33 1924
