THESEUS patrol boats (2004-2005)
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Θησεύς [Theseus] | PV23 | CN Vittoria, Adria, Italy | 2004 | in service (2019) | |||
| Ονήσιλος [Onisilos] | PV24 | CN Vittoria, Adria, Italy | 2005 | in service (2019) |
|
Displacement standard, t |
90 |
|
Displacement full, t |
110 |
|
Length, m |
26.8 |
|
Breadth, m |
7.60 |
|
Draught, m |
1.20 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 16V4000 M90 diesels |
|
Power, h. p. |
3700 |
|
Max speed, kts |
43 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 800(35) |
|
Armament |
3 x 1 - 12.7/90 |
|
Electronic equipment |
2x Furuno radars |
|
Complement |
9 |
Project history: Maritime Police. Italian Corrubia class.
Modernizations: None.
Naval service: No significant events.

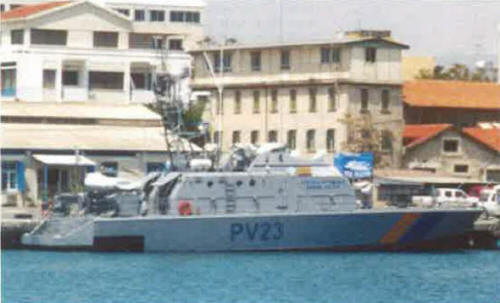

Theseus 2006
