ODYSSEUS patrol boat (1998)
|
Names |
PV22 Οδυσσεύς [Odysseus] |
|
Builders |
Israeli SY, Haifa, Israel: PV22 |
|
Commissioned |
1998: PV22 |
|
Losses |
none |
|
Transfers |
none |
|
Discarding |
in service (2019): PV22 |
|
Displacement standard, t |
50 |
|
Displacement full, t |
56 |
|
Length, m |
20.0 pp 24.8 oa |
|
Breadth, m |
6.00 |
|
Draught, m |
1.21 |
|
No of shafts |
2 waterjets |
|
Machinery |
2 MTU 12V396 TE diesels |
|
Power, h. p. |
3560 |
|
Max speed, kts |
50 |
|
Fuel, t |
diesel oil |
| Endurance, nm(kts) | 850(16) |
|
Armament |
1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
|
Electronic equipment |
Raytheon radar, MSIS e/o system |
|
Complement |
15 |
Project history: Maritime Police. Israeli 'Shaldag' class.
Modernizations: None.
Naval service: No significant events.

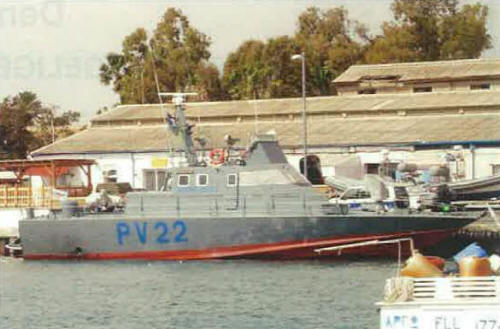

Odysseus 2005
© Ivan Gogin, 2019
