Cuba 1943

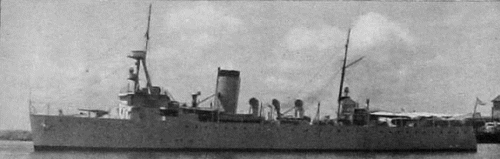

Cuba 1960
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Cuba | Cramp, Philadelphia, USA | 10.8.1911 | 1911 | stricken 1971 |
|
Displacement normal, t |
2055 |
|
Displacement full, t |
|
|
Length, m |
79.2 |
|
Breadth, m |
11.9 |
|
Draught, m |
4.30 |
|
No of shafts |
2 |
|
Machinery |
2 VTE, Babcock boilers |
|
Power, h. p. |
6000 |
|
Max speed, kts |
18 |
|
Fuel, t |
coal 250 |
|
Endurance, nm(kts) |
|
|
Armament |
2 x 1 - 102/50 Bethlehem, 4 x 1 - 57/40 Mk I/II, 4 x 1 - 47/40 Mk I/II, 4 x 1 - 37/40 Mk II/III, 2 x 1 - 7.6/90 |
| Complement | 145 |
Project history: Officially was classified as cruiser. Cuba was ordered under the 1910 programme, represented the project of Montgomery class cruiser, which has well proved during the Spanish-American war, adapted under Cuban requirements.
Modernizations: mid-1930s: boilers were converted to oil fuel; - 4 x 1 - 47/40, 4 x 1 - 37/40; + 2 x 1 - 76/50 Mk 3.5.6, 2 x 1 - 76/23 Mk 7.9, 2 x 1 - 57/40 Mk 1.2
1942: + 2 DCT
1960s: + radar (presumably)
Naval service: Since 1961 Cuba was used as accommodation ship, stricken in 1971.

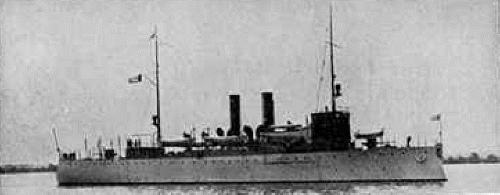

Cuba 1920s
Cuba 1952
