CUBAN NAVY (CUBA)

AMPHIBIOUS CRAFT

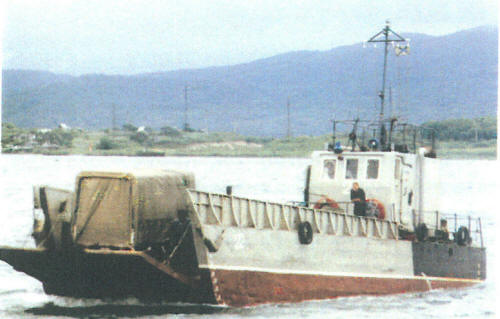

'T4' landing craft (1967-1974)

Name No Yard No Builder Laid down Launched Comp Fate
i     USSR     1967/74 discarded early 1980s
ii     USSR     1967/74 discarded early 1980s
iii     USSR     1967/74 discarded early 1980s
iv     USSR     1967/74 discarded early 1980s
v     USSR     1967/74 discarded early 1980s
vi     USSR     1967/74 discarded late 1980s
vii     USSR     1967/74 discarded late 1980s
viii     USSR     1967/74 discarded late 1980s
ix     USSR     1967/74 discarded late 1980s
x     USSR     1967/74 discarded late 1980s
xi     USSR     1967/74 discarded early 1990s
xii     USSR     1967/74 discarded early 1990s



Displacement standard, t

56

Displacement normal, t

118

Length, m

T-4: 19.1

T-4M: 21.0

Breadth, m

T-4: 5.50

T-4M: 5.56

Draught, m

T-4: 1.22

T-4M: 1.55

No of shafts

2

Machinery

T-4: 2 3D6 diesels

T-4M: 2 3D12A diesels

Power, h. p.

T-4: 300

T-4M: 600

Max speed, kts

T-4: 8.6

T-4M: 10

Fuel, t

diesel oil

Endurance, nm(kts)

270(8)

Armament

none

Military load

T-4: 1 medium tank or 40 t of cargo

T-4M: 1 medium tank or 50 t of cargo

Complement

T-4: 4

T-4M: 5



Project history: Former Soviet T-4 or T-4M landing craft.

Modernizations: None.

Naval service: No significant events.
