Mariel 1985
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
| Mariel (ex-ÑÊÐ-28 [SKR-28]) | 350 | 251 | Gorkiy Yd, Zelenodolsk, USSR | 17.7.1979 | 21.6.1980 | 30.12.1980 // 24.9.1981 | stricken 1997 |
| Moncada (ex-ÑÊÐ-451 [SKR-451]) | 353 | 257 | Gorkiy Yd, Zelenodolsk, USSR | 6.5.1986 | 3.5.1987 | 25.12.1987 // 10.4.1988 | stricken 1998 |
| (ex-ÑÊÐ-471 [SKR-471]) | 356 | 253 | Gorkiy Yd, Zelenodolsk, USSR | 24.4.1981 | 31.7.1982 | 17.8.1983 // 2.1984 | stricken 1996 |
|
Displacement standard, t |
1520 |
|
Displacement normal, t |
1673 |
|
Length, m |
96.5 |
|
Breadth, m |
12.6 |
|
Draught, m |
3.32 hull 5.74 max |
|
No of shafts |
3 |
|
Machinery |
1 M-8G gas turbine (central shaft) + 2 68B diesels (outer shafts) |
|
Power, h. p. |
20000 + 16000 = 36000 |
|
Max speed, kts |
29 |
|
Fuel, t |
diesel oil |
|
Endurance, nm(kts) |
4000(14) |
|
Armament |
1 x 2 Osa-M SAM (20 9M33), 2 x 2 - 76/59 AK-726, 2 x 2 - 30/71 AK-230, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR (12), 14 mines |
|
Sensors |
MR-320 Topaz-2V, Fut-N, 4R-33, MR-105 Turel', MR-104 Rys', Don radars, MG-311 Vychegda sonar, Bizan'-4B ECM suite |
|
Complement |
108 |
Project history: Small frigates of Soviet export project 1159T.
Modernizations: None.
Naval service: No significant events.

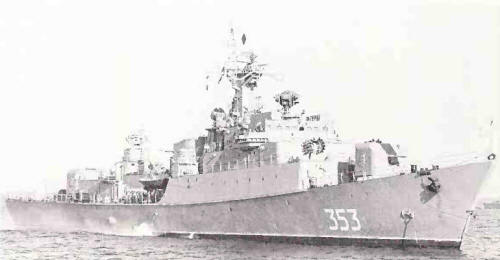

Moncada 1988
